Home / All / Press Brake / RWP-CNC Series RONGWIN CNC Hydraulic Press Brake Electro Hydraulic Synchronized Bending Machine

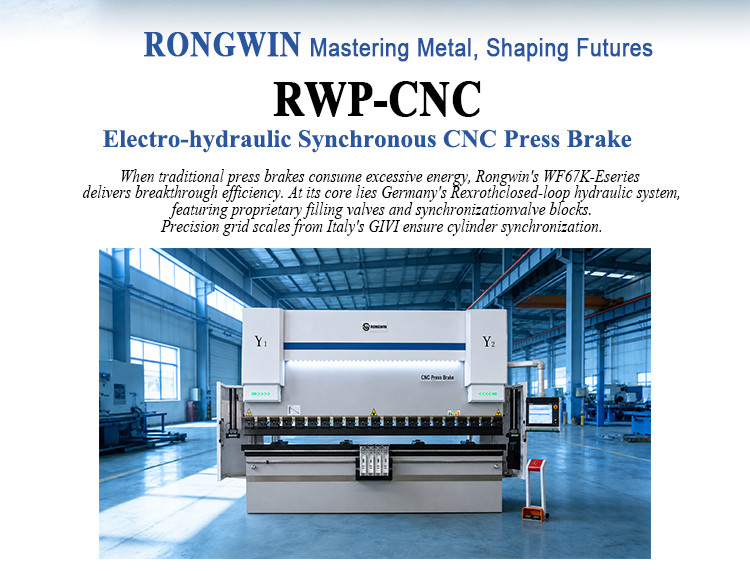

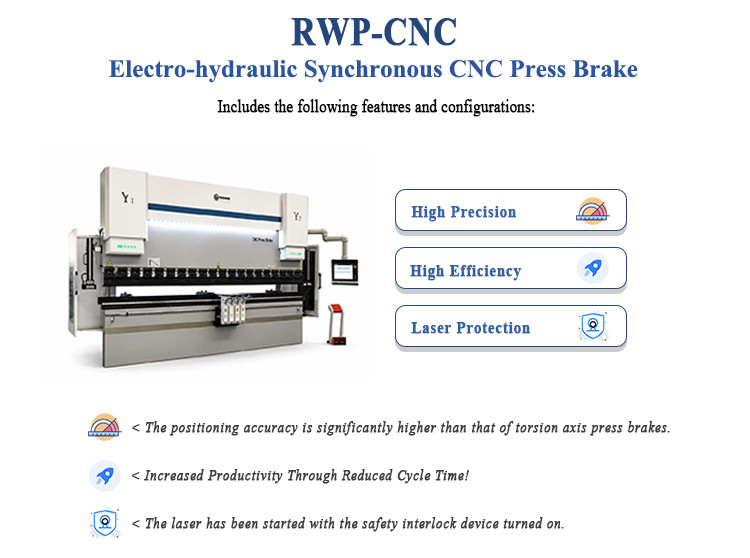

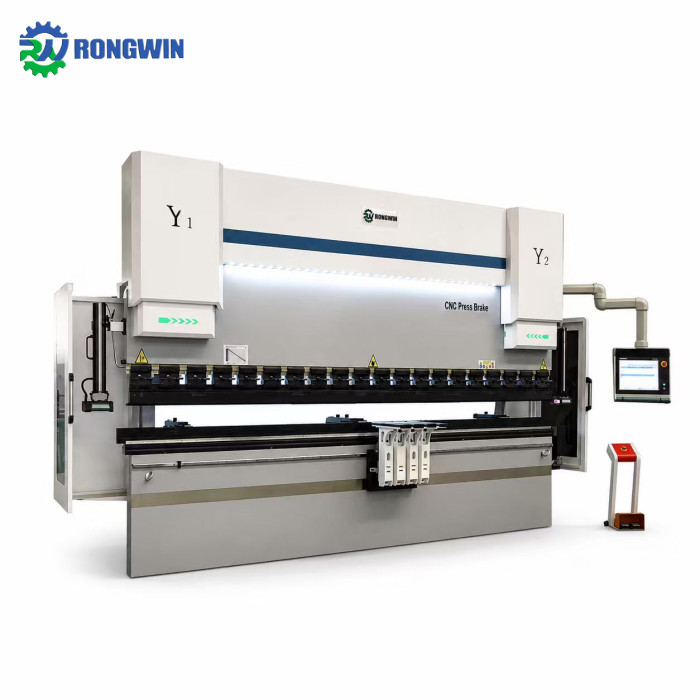

RWP-CNC Series RONGWIN CNC Hydraulic Press Brake Electro Hydraulic Synchronized Bending Machine
Precision CNC Press Brake: User-Friendly Control, Accurate Repeatability for Light Gauge Metal, Cabinets, Brackets & Panels
| Share | |
|---|---|
| Categories | Press Brake |
| Brand | MetalWorkMaster Smart Custom Metal Solution Expert |
| Model | RWP-CNC Series |
| Color | Blue and White |
| Machine Type | Synchronized |
| Workbench length (mm) | 4000 mm |
| Degree of automation | Fully Automatic |
| Degree of oldness | New |
| country of origin | China |
| Machinable materials | Brass/ Copper,stainless steel,ALLO |
| Core selling point | High Productivity |
| Warranty | 3 years |
| Applicable industries | Hotels,Garment Shops,United States |
| Marketing Type | Hot Product 2024 |
| Mechanical test report | Provided |
| Video factory inspection | Provided |
| Core component warranty period | 1 Year |
| Unit Price | US $ 18014-35460 / ton |
| FOB port | shanghai |
| Terms of Payment | L/C, T/T |
Detail Information
Press Brake | Nominal
Pressure
(mm) | Bending
Length
(mm) | Poles
distance
(mm) | Throat
depth
(mm) | SlipperStroke(mm) | Max
Opening
Height
(mm) | Main
motor
(KW) | Travel
(mm) | Weight
(Kg) |
40T/1600 | 400 | 1600 | 1260 | 300 | 150 | 420 | 5.5 | 500 | 3800 |
63T/2500 | 630 | 2500 | 2000 | 300 | 150 | 420 | 5.5 | 500 | 4800 |
80T/2500 | 800 | 2500 | 2000 | 350 | 200 | 480 | 7.5 | 600 | 5700 |
|
100T/3200
|
1000
|
3200
|
2700 | 400 |
200/250
|
480/520 | 7.5 | 600 | 8500 |
|
100T/4000
|
1000
|
4000
|
3600 | 400 |
200/250
|
480/520 | 7.5 | 600 | 9300 |
|
160T/3200
|
1600
|
3200
|
2700 | 400 |
200/250
|
480/520 | 11 | 600 | 9500 |
160T/4000 | 1600 | 4000 | 3600 | 400 | 200/250 | 480/520 | 11 | 600 | 12100 |
|
200T/3200
|
2000
|
3200
|
2700 | 400 |
250
|
530 | 15 | 600 | 11000 |
200T/4000 | 2000 | 4000 | 3600 | 400 | 250 | 530 | 15 | 600 | 13500 |
250T/3200 | 2500 | 3200 | 2700 | 400 | 250 | 530 | 18.5 | 600 | 13000 |
250T/4000 | 2500 | 4000 | 3600 | 400 | 250 | 530 | 18.5 | 600 | 15500 |
250T/5000 | 2500 | 5000 | 4300 | 400 | 250 | 530 | 22 | 600 | 18000 |
300T/3200 | 3000 | 3200 | 2700 | 400 | 300 | 580 | 22 | 600 | 19200 |
300T/4000 | 3000 | 4000 | 3600 | 400 | 300 | 580 | 22 | 600 | 22500 |
400T/4000 | 4000 | 4000 | 3600 | 400 | 320 | 580 | 30 | 600 | 25500 |
400T/5000 | 4000 | 5000 | 4000 | 400 | 320 | 580 | 30 | 600 | 31500 |
500T/4000 | 5000 | 4000 | 3500 | 500 | 320 | 590 | 37 | 600 | 34500 |
500T/5000 | 5000 | 5000 | 4000 | 500 | 320 | 590 | 37 | 800 | 43500 |
500T/6000 | 5000 | 6000 | 5000 | 500 | 320 | 590 | 37 | 800 | 53000 |
600T/5000 | 6000 | 5000 | 4000 | 500 | 320 | 640 | 45 | 800 | 57000 |
600T/6000 | 6000 | 6000 | 5000 | 500 | 320 | 640 | 45 | 800 | 68000 |
600T/7000 | 6000 | 7000 | 6000 | 500 | 320 | 640 | 45 | 800 | 79000 |
800T/6000 | 8000 | 6000 | 5000 | 600 | 400 | 800 | 55 | 800 | 90000 |
800T/7000 | 8000 | 7000 | 6000 | 600 | 400 | 800 | 55 | 800 | 105000 |
800T/8000 | 8000 | 8000 | 7000 | 600 | 400 | 800 | 55 | 800 | 120000 |
1000T/6000 | 10000 | 6000 | 5000 | 600 | 400 | 800 | 2x37 | 800 | 100000 |
1000T/8000 | 10000 | 8000 | 6900 | 700 | 400 | 800 | 2x37 | 800 | 130000 |
1000T/10000 | 10000 | 10000 | 8000 | 700 | 400 | 800 | 2x37 | 800 | 150000 |
1200T/6000 | 12000 | 6000 | 4220 | 700 | 400 | 1000 | 2x45 | 1000 | 130000 |
1200T/7000 | 12000 | 7000 | 5220 | 700 | 400 | 1000 | 2x45 | 1000 | 160000 |
1600T/6000 | 16000 | 6000 | 4900 | 700 | 400 | 1000 | 2x55 | 1000 | 150000 |
1600T/7000 | 16000 | 7000 | 5900 | 700 | 400 | 1000 | 2x55 | 1000 | 170000 |
1600T/8000 | 16000 | 8000 | 6900 | 700 | 400 | 1000 | 2x55 | 1000 | 190000 |
1600T/10000 | 16000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | 210000 |
2000T/8000 | 20000 | 8000 | 6200 | 700 | 400 | 1000 | 2x55 | 1000 | 260000 |
2000T/10000 | 20000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | 290000 |
2000T/12000 | 20000 | 12000 | 9050 | 700 | 400 | 1000 | 2x55 | 1000 | 320000 |
2000T/14000 | 20000 | 14000 | 11000 | 700 | 400 | 1000 | 2x55 | 1000 | 350000 |
3000T/8000 | 30000 | 8000 | 6200 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/10000 | 30000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/12000 | 30000 | 12000 | 9050 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/14000 | 30000 | 14000 | 11000 | 700 | 400 | 1000 | 2x55 | 1000 | / |
Hydraulic valve group
Main motor
Stop finger
Fast clamp
Schneider electric
Foot switch
Front support
Grating ruler

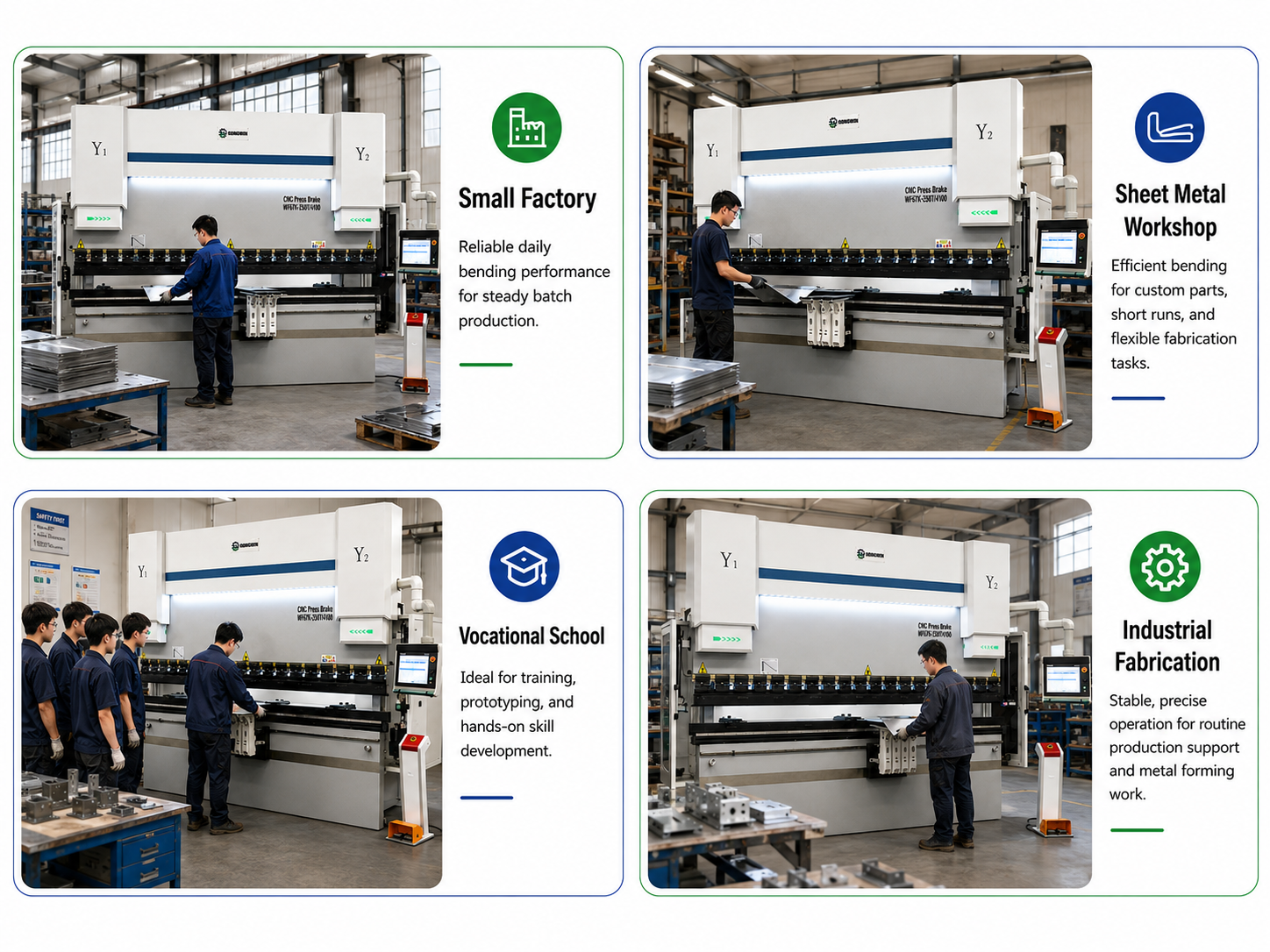

Which press brake is suitable for a small fabrication shop?
A compact CNC hydraulic or servo electric press brake is ideal for small workshops. Buyers should consider material type, maximum thickness, bending length, production volume, available floor space and budget before selecting the machine.
Why is a CNC press brake more efficient than a conventional machine?
A CNC press brake automatically controls the ram position, back gauge movement, bending angle and working sequence. It improves accuracy, reduces setup time, lowers operator dependence and supports repeat production of complex parts.
How should I choose press brake tooling for sheet metal bending?
Tooling should be selected according to material thickness, tensile strength, required angle, inner radius and part shape. Standard punches and dies are suitable for common work, while special profiles may require customized tooling.
How do I choose the correct press brake size?
The machine should be selected according to maximum bending length, material thickness, material strength and required tonnage. Additional capacity is recommended when processing high strength steel or parts with demanding bending conditions.
What materials can a CNC press brake process?
A press brake can bend carbon steel, stainless steel, aluminum, galvanized sheet, copper and other metal plates. The required tonnage and tooling vary according to material strength, thickness and bending radius.
What bending accuracy can a modern CNC press brake achieve?
Accuracy depends on the machine structure, CNC system, hydraulic control, crowning system, tooling condition and material consistency. Automatic crowning and angle compensation can improve bending consistency across long workpieces.
Can the machine be customized for my production requirements?
Yes. Custom options may include working length, tonnage, controller, back gauge axes, throat depth, daylight opening, stroke, tooling, safety system, voltage, robotic loading and automatic angle measurement.
Is installation and operator training available?
Suppliers can provide installation manuals, operating videos, remote guidance and online programming support. Onsite installation and training may also be arranged according to the destination, machine configuration and service conditions.
