Home / All / Press Brake / Advanced Sheet press brake WF67K-E | EIntegrating CNC and Hydraulic Press Brake Systems

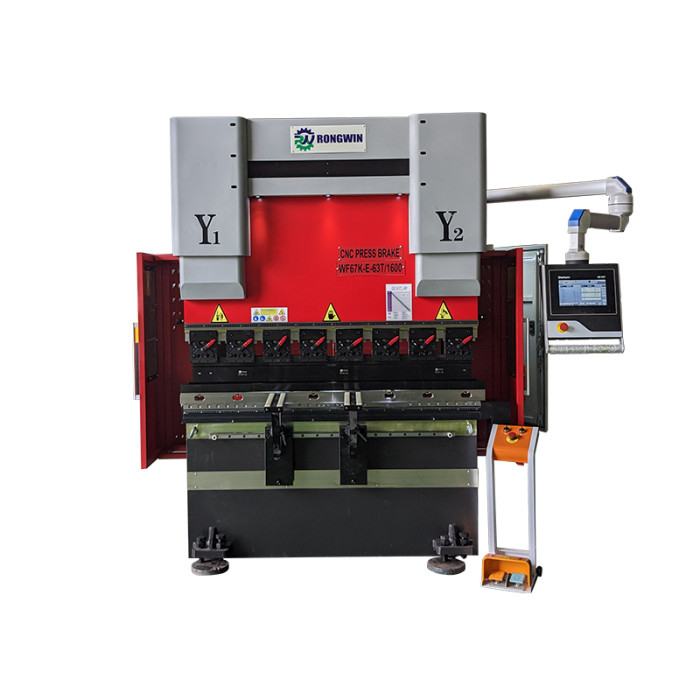

Advanced Sheet press brake WF67K-E | EIntegrating CNC and Hydraulic Press Brake Systems
The WF67K-E Sheet Press Brake offers precise bending for sheet metal, with advanced control for accuracy.
| Categories | Press Brake |
|---|---|
| Brand | MetalWorkMaster Smart Custom Metal Solution Expert |
| Model | WF67K-E |
| Color | Red |
| Bending angle | 0-180 degrees |
| Repeat positioning accuracy | ±0.01mm |
| Bending length | 1600 mm - 14000 mm |
| Main motor power | 5.5 KW - 2x55 KW |
| Stroke | 500 mm - 1000 mm |
| Hydraulic System | ？ |
| Tonnage | ？ |
| Material Thickness and Width | ？ |
| Update Time | Aug 21,2025 |
Detail Information
WF67K-E Sheet Bending Machine Overview
High Precision Bending Machine
The WF67K-E press brake adopts German imported electro-hydraulic servo valve and grating ruler closed-loop control to achieve high precision and high-speed operation. The whole machine adopts integral welding and aging treatment before overall processing to ensure accuracy and reliability.
The high-configuration DA69T system supports 3D and 2D graphic touch screen programming, 3D visualization, Windows application suite and multiple interfaces. Optional mechanical torsion compensation system and multi-machine linkage function can further improve bending accuracy and production efficiency.
Features:
1.
2.
3.
WF67K-E Sheet Bending Machine Technical Parameters
WF67K-E press brake series offers a variety of models, covering a variety of needs from small to large, the specific technical parameters range as follows:
Parameter | Content | ||||
Bending angle： | 0-180 degrees | ||||
Repeat positioning accuracy： | ±0.01mm | ||||
Power requirement： | 380V, 50Hz | ||||
Nominal pressure： | 400 mm - 30000 mm | ||||
Bending length： | 1600 mm - 14000 mm | ||||
Pole distance： | 1260 mm - 11000 mm | ||||
Throat depth： | 300 mm - 700 mm | ||||
Sliding stroke： | 150 mm - 400 mm | ||||
Opening height： | 420 mm - 1000 mm | ||||
Main motor power： | 5.5 KW - 2x55 KW | ||||
Stroke： | 500 mm - 1000 mm | ||||
Minimum weight： | 3800 Kg (maximum model weight depends on specific configuration) | ||||
Parameters within this range reflect the wide applicability of the WF67K-E series press brakes in different application scenarios, from small and medium-sized precision processing to large-scale industrial manufacturing.
WF67K-E Sheet Bending Machine Details Display
Rear Stopper
Main Motor
Oil Pump
Quick Clamp
Upper Die
Lower Die
Front Support
Grating Ruler
WF67K-E Sheet Bending Machine Applicable Scene
WF67K-E Sheet Bending Machine FAQ
What types of materials can the WF67K-E Sheet Bending Machine?
Our press brake can handle a wide range of materials, such as steel, aluminum, copper, and stainless steel, ensuring versatility for different manufacturing applications.
Do you offer training for operators using the Sheet Bending Machine?
We offer extensive training programs for machine operators, covering setup, operation, safety protocols, and troubleshooting. Our training is valid for the lifetime of the machine, and new training sessions can be provided as needed for equipment upgrades and modifications.
