Home / All / Press Brake / RWP-Panel Series Automatic Panel Bending Machine CNC Panel Bender for Sheet Metal Door Cabinet Production

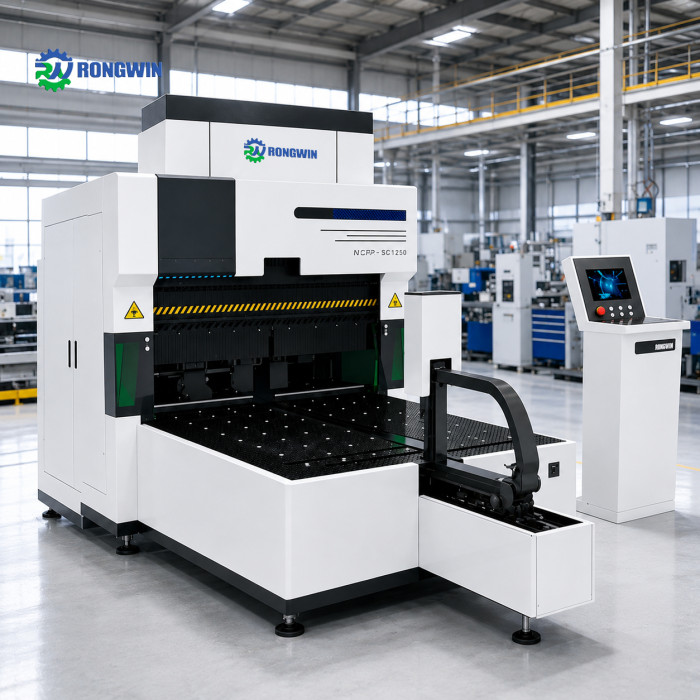

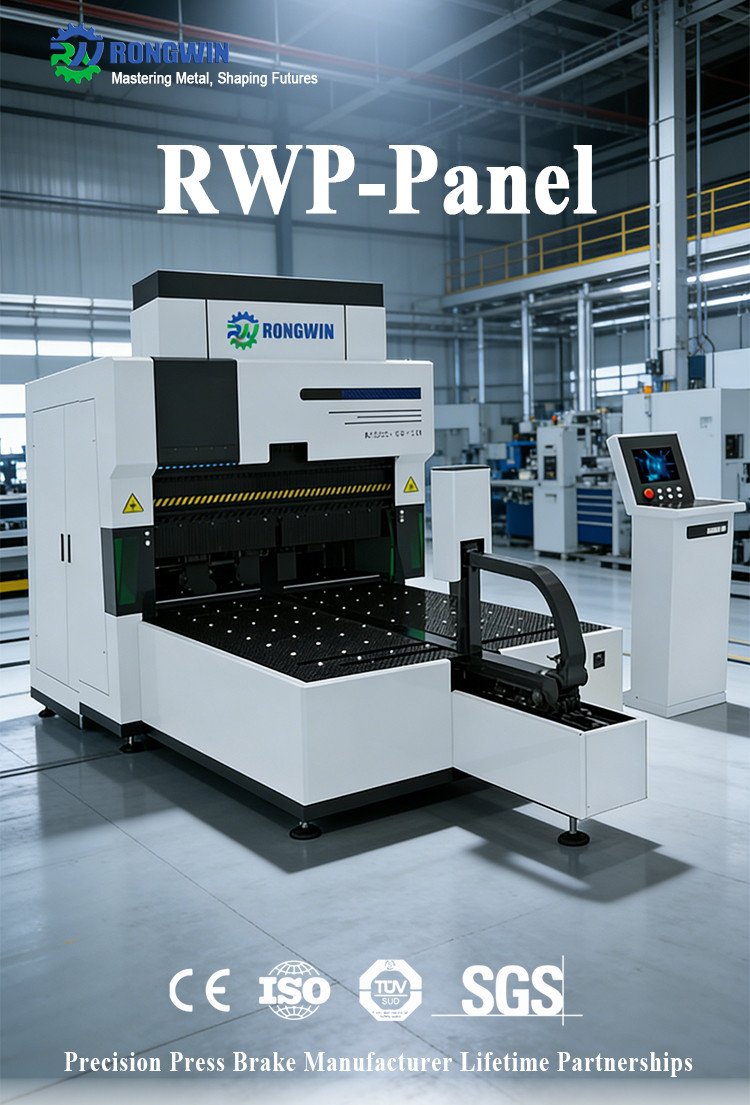

RWP-Panel Series Automatic Panel Bending Machine CNC Panel Bender for Sheet Metal Door Cabinet Production
Automated CNC Panel Bender: Fast Flexible Folding for Cabinets, Enclosures, Shelving, Elevator Parts & Appliance Panels
| Share | |
|---|---|
| Categories | Press Brake |
| Brand | MetalWorkMaster Smart Custom Metal Solution Expert |
| Model | RWP-Panel Series |
| Machine type | panel bender |
| Degree of automation | Fully Automatic |
| Degree of oldness | New |
| Country of origin | China |
| Machinable materials | Brass/Copper/Stainless Steel |
| Core selling point | Automatic |
| Warranty | 1 Year |
| Marketing type | New Product 2024 |
| Mechanical test report | Provided |
| Core component warranty period | 1 Year |
| Unit Price | US $ 8880-12220 / millimeter |
| FOB port | shanghai |
| Terms of Payment | L/C, T/T |
Detail Information
RWP-Panel Application Scenario
RWP-Panel Advantages
Feature 1
Positioning pushing device
will place the plate to be folded inthe X and Y directions, which canrealize the pre-positioning betweenthe plate and the machine tool.There are two groups of positioningblocks, which can locate the cornerand the edge respectively. Thecombination has nine positioningfunctions, and the Y direction of theleft and right positioning seat canbe adjusted (+50mm) to adapt tothe positioning funetion of varioussheets.
Feature 2
Smart Control system
Rongwin's brand-new selfdeveloped full-servo CNC systemhas seamless and coherentmovements, leading the world inwork efficiency, andindependently designed hardwarecircuit boards with lead-freesoldering and surface immersiongold processing technology.which is stable and durable.Abundant interfaces are reservedto support CNC, PLC, robot, etc.Provide partners with free lifetimesystem upgrade services.
RWP-Panel Series Core Components
Rotating device
Press tooling
High strength frame
The servo drive motor
RWP-Panel Series Key Advantages
The automatic panel bending machine completes positioning, clamping, bending, and workpiece rotation through intelligent CNC control, reducing manual operation and improving production efficiency.
Advanced CNC technology provides accurate positioning, stable bending angles, and consistent finished dimensions for continuous sheet metal production.
The CNC panel bender supports upward bending, downward bending, arc bending, hemming, and complex multi side bending for diverse processing requirements.
Automatic workpiece positioning and continuous bending reduce handling time, shorten production cycles, and increase daily manufacturing capacity.
Suitable for processing carbon steel, stainless steel, aluminum, galvanized steel, and other sheet metal materials with different sizes and thicknesses.
Automated bending reduces dependence on experienced operators, simplifies production procedures, and helps manufacturers lower long term labor costs.
Precise CNC control and stable bending movements improve repeatability, reduce dimensional errors, and maintain reliable quality across large production batches.
Ideal for electrical cabinets, metal doors, elevator panels, kitchen equipment, office furniture, appliance enclosures, ventilation products, and general sheet metal fabrication.
Working size, bending capacity, CNC system, loading method, safety protection, and automation functions can be customized according to specific production requirements.
RONGWIN provides professional solution design, strict quality inspection, installation guidance, operator training, technical support, and responsive global after sales service.
Items | RWP-Panel1000X | RWP-Panel 1400X | RWP-Panel1000XC | RWP-Panel1400XC | RWP-Panel1400PC1PC3 | RWP-Panel2000PC1/C3 | RWP-Panel2500PC1PC3 | RWP-Panel2000PS | RWP-Panel2500PS | RWP-Panel3200PS | RWP-Panel2000A | RWP-Panel2500A | |
Axis QTY | 9 | 9 | 11 | 11 | 15 | 15 | 15 | 18 | 18 | 18 | 21 | 21 | |
Max,bending width of sheet metal | 1000mm | 1400mm | 1000m | 1400mm | 1400mm | 2000mm | 2500mm | 2000mm | 2500mm | 3200mm | 2000mm | 2500mm | |
Max.bending height(afer bending) | 170mm | 170mm | 170mm | 170mm | 170mm300mm(PC3) | 1 70mm300mm(PC3) | 1 70mm300mm(PC3) | 1 70mm | 170mm | 170mm | 170mm | 170mm | |
Max.bending thickness of sheet metal | Material:st37 black materia | 1.0mm | 1.0mm | 1.0mm | 1.0mm | 1.20mm | 1.2mm | 1.2nm | 2.0mm | 2.0mm | 1.5mm | 1.5mm | 1.5mm |
Material:AISI 304 Stainless steel | 1.2mm | 1.2mm | 1.2mm | 1.2mm | 1.5mm | 1.5mm | 1.5mm | 3.0mm | 3.0mm | 2.0mm | 2.0mm |
2.0mm
|
|
Material;UsT 265N/mm2 aluusninu | 1.6mm | 1.6mm | 1.60mm | 1.6mm | 2.0mm | 2.0mm | 2.0mm | ------- | -------- | ------- | 3.0mm | 3.0mm | |
Min-panel thickness ofsheet metal | 0.35mm | 0.35mm | 0.35mm | 0.35mm | 0.35mm | 0.35mm | 0.35mm | 0.35mm | 0.35mm | 0.35mmn | 0.35mm | 0.35mm | |
Max.bending size ofsheet anetal | 1000*1000mm | 1400*1400mm | 1000*1000
mm | 1400*1400
mm | 1400*1400mm | 2000*1500
mm | 2500*1500mm | 2000*1500
mm | 2500*1500
mm | 3200*1500
mm | 2000*1500
mm | 2500*1500mm | |
|
Feeding Mfethod
|
Suetion cup Used on sanooth pinel surice,no punching,noholes,which benefits suction cup to adsorb. | Pressing armit is suitable for mesh,corgated,hollow andwarious flnt or special-shaped work pieces |
|||||||||||

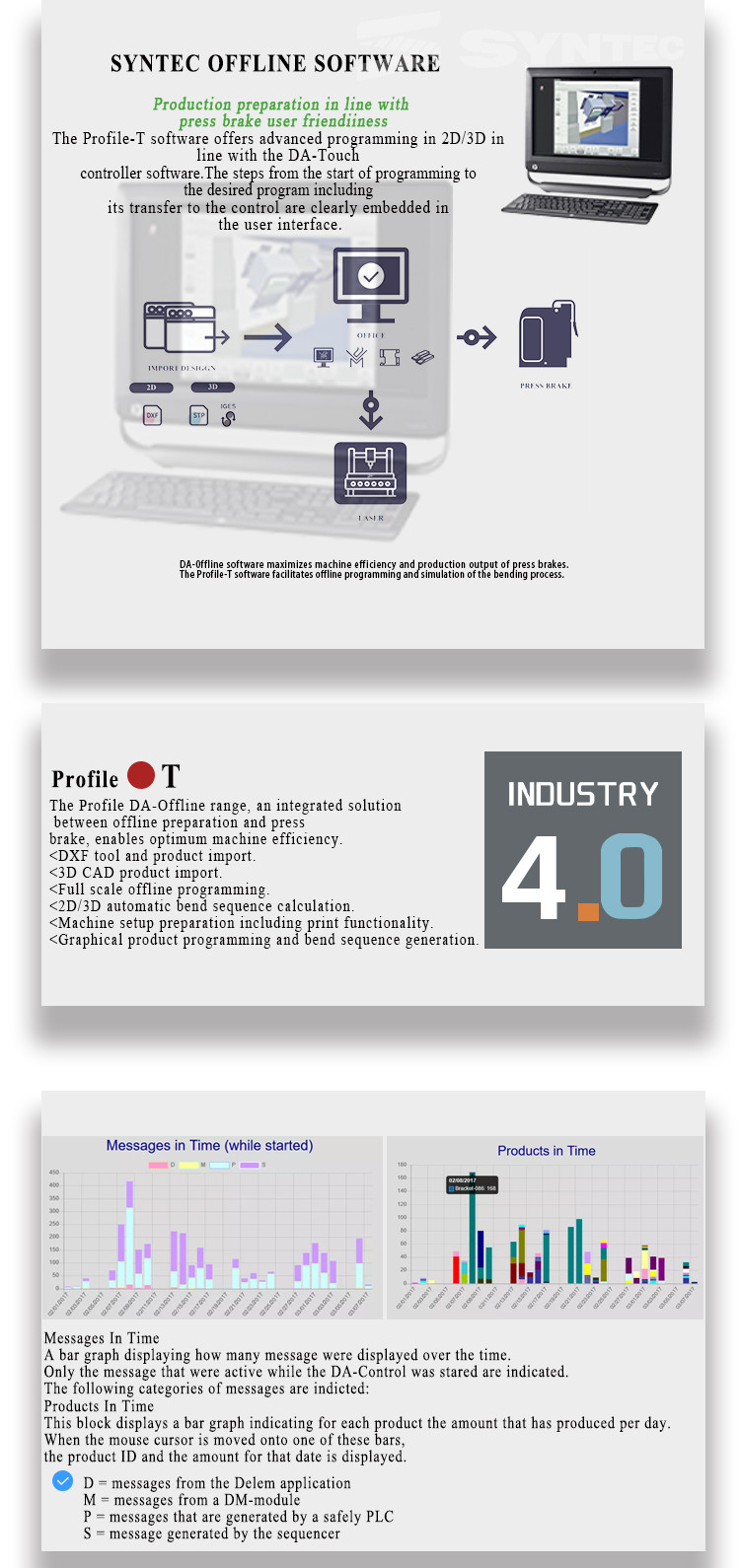

What are the benefits of offline press brake programming?
Offline programming allows engineers to prepare bending programs without stopping the machine. It improves equipment utilization, verifies bending sequences, reduces trial production and helps operators manage complicated parts more efficiently.
Are financing or leasing options available for press brakes?
Financing availability depends on the buyer’s country, local bank and equipment distributor. Buyers can request a formal quotation, technical specification and commercial invoice to support financing or leasing applications.
What affects the price of a 150 ton 10 foot press brake?
The price is influenced by the CNC controller, number of axes, hydraulic system, back gauge structure, tooling package, safety equipment, motor configuration, electrical components, automation options and shipping destination.
How do I choose the correct press brake size?
The machine should be selected according to maximum bending length, material thickness, material strength and required tonnage. Additional capacity is recommended when processing high strength steel or parts with demanding bending conditions.
What materials can a CNC press brake process?
A press brake can bend carbon steel, stainless steel, aluminum, galvanized sheet, copper and other metal plates. The required tonnage and tooling vary according to material strength, thickness and bending radius.
What bending accuracy can a modern CNC press brake achieve?
Accuracy depends on the machine structure, CNC system, hydraulic control, crowning system, tooling condition and material consistency. Automatic crowning and angle compensation can improve bending consistency across long workpieces.
Can the machine be customized for my production requirements?
Yes. Custom options may include working length, tonnage, controller, back gauge axes, throat depth, daylight opening, stroke, tooling, safety system, voltage, robotic loading and automatic angle measurement.
Is installation and operator training available?
Suppliers can provide installation manuals, operating videos, remote guidance and online programming support. Onsite installation and training may also be arranged according to the destination, machine configuration and service conditions.
