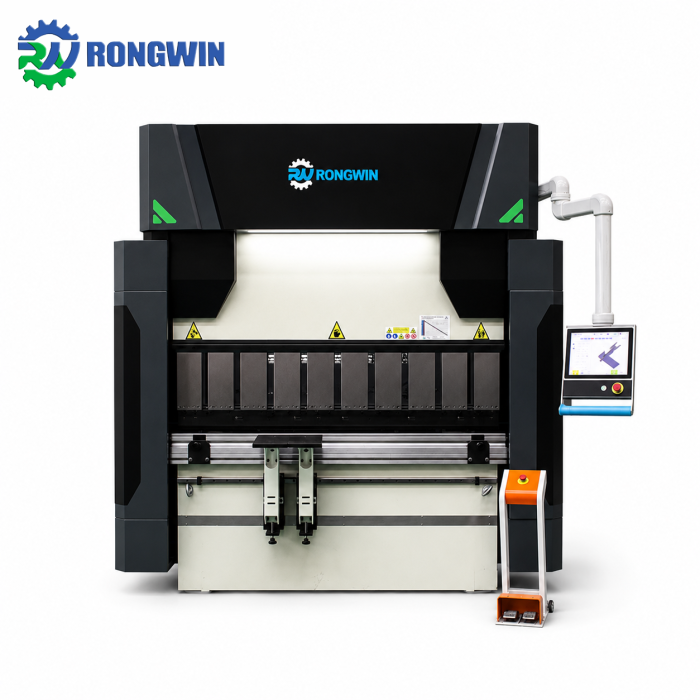

RWP-Electric Series RONGWIN CNC Servo Electric Press Brake High Speed Energy Saving Bending Machine

Energy-Saving EP-D Servo Bending Equipment: Oil-Free Operation, Fast Response & Stable Accuracy for Metal Fabrication Workshops

Share
Categories	Press Brake
Brand	MetalWorkMaster Smart Custom Metal Solution Expert
Model	RWP-Electric Series
Color	Dark Gray
Bending angle	0-180 degrees
Repeat positioning accuracy	0.01mm
Bending length	1600mm-14000mm
Main motor power	5.5KW -2x55KW
Stroke	500mm-1000mm
Unit Price	US $ 20229-30120 / ton
FOB port	shanghai
Terms of Payment	L/C, D/A, D/P

Contact Now

Detail Information

RWP-Electric Series Key Advantages

All electric servo drive system eliminates hydraulic oil and filters, reducing maintenance costs by over 60% while providing instant ram response and ultra high positioning accuracy for precision bending operations.

Extreme energy efficiency with servo motors that only consume power during bending movement, cutting electricity usage by up to 70% compared to traditional hydraulic press brakes, significantly lowering your workshop operating expenses.

High speed production cycle featuring rapid approach speeds up to 200 mm/s and fast return, enabling faster throughput for light gauge sheet metal processing, ideal for mass production of electrical enclosures, HVAC parts, and automotive components.

Clean and environmentally friendly operation with zero oil leakage risk, quiet performance below 68 decibels, and compliance with strict workplace safety and environmental regulations, making it perfect for clean production workshops.

Advanced CNC control with intuitive programming interface, automatic tool compensation, and memory storage for thousands of bending programs, allowing quick changeovers and reducing operator dependency for consistent part quality.

Electric Press Brake Syntec System

It is a CNC system specially developed for pure electric bending machines.

It provides an approachable programming method, making bending processing easier.

At the same time, the open interface is flexible and customized, and peripheral configurations can be expanded, such as auxiliary trolleys, making bending easier.

DXF import

2D Color Graphics

3D visualisation

Electric Press Brake SDKELI Laser Protection

Protection provides excellent optical performance while maintaining the highest productivity of CNC electric bending machines.

Electric Press Brake WILA AIRPOWER TOOLING SYSTEM

WILA hydraulic tool clamp, powered by hydraulic systems, deliver highclamping force and stability, designed for heavy-duty tooling andhigh-precision bending applications to meet rigorous industrial demands.

Electric Press Brake Servo electric technology

Providing high precision, high flexibility and consistently excellent results in the bending process. Our fully electric servo press brakes have low power consumption, low maintenance costs and do not require hydraulic oil or other hydraulic components to operate.

The features the advantages of high acceleration, deceleration and fast responsetimes of the servo-electric drive system, Compared to conventional press brakesconsiderable productivity increase can be reached,reduction of cycle timesby up to 35 % and more is the reality.

Time cycle comparison

High speed ram stroke by Ac Servo motor and ball serewdrive for fast approach, bending, and return speeds.

Bending time necessary to realize this 6 bend box - only machine time.

Press Brake	Nominal Pressure (mm)	Bending Length (mm)	Poles distance (mm)	Throat depth (mm)	SlipperStroke(mm)	Max Opening Height (mm)	Main motor (KW)	Travel (mm)	Weight (Kg)
40T/1600	400	1600	1260	300	150	420	5.5	500	3800
63T/2500	630	2500	2000	300	150	420	5.5	500	4800
80T/2500	800	2500	2000	350	200	480	7.5	600	5700
100T/3200	1000	3200	2700	400	200/250	480/520	7.5	600	8500
100T/4000	1000	4000	3600	400	200/250	480/520	7.5	600	9300
160T/3200	1600	3200	2700	400	200/250	480/520	11	600	9500
160T/4000	1600	4000	3600	400	200/250	480/520	11	600	12100
200T/3200	2000	3200	2700	400	250	530	15	600	11000
200T/4000	2000	4000	3600	400	250	530	15	600	13500
250T/3200	2500	3200	2700	400	250	530	18.5	600	13000
250T/4000	2500	4000	3600	400	250	530	18.5	600	15500
250T/5000	2500	5000	4300	400	250	530	22	600	18000
300T/3200	3000	3200	2700	400	300	580	22	600	19200
300T/4000	3000	4000	3600	400	300	580	22	600	22500
400T/4000	4000	4000	3600	400	320	580	30	600	25500
400T/5000	4000	5000	4000	400	320	580	30	600	31500
500T/4000	5000	4000	3500	500	320	590	37	600	34500
500T/5000	5000	5000	4000	500	320	590	37	800	43500
500T/6000	5000	6000	5000	500	320	590	37	800	53000
600T/5000	6000	5000	4000	500	320	640	45	800	57000
600T/6000	6000	6000	5000	500	320	640	45	800	68000
600T/7000	6000	7000	6000	500	320	640	45	800	79000
800T/6000	8000	6000	5000	600	400	800	55	800	90000
800T/7000	8000	7000	6000	600	400	800	55	800	105000
800T/8000	8000	8000	7000	600	400	800	55	800	120000
1000T/6000	10000	6000	5000	600	400	800	2x37	800	100000
1000T/8000	10000	8000	6900	700	400	800	2x37	800	130000
1000T/10000	10000	10000	8000	700	400	800	2x37	800	150000
1200T/6000	12000	6000	4220	700	400	1000	2x45	1000	130000
1200T/7000	12000	7000	5220	700	400	1000	2x45	1000	160000
1600T/6000	16000	6000	4900	700	400	1000	2x55	1000	150000
1600T/7000	16000	7000	5900	700	400	1000	2x55	1000	170000
1600T/8000	16000	8000	6900	700	400	1000	2x55	1000	190000
1600T/10000	16000	10000	8000	700	400	1000	2x55	1000	210000
2000T/8000	20000	8000	6200	700	400	1000	2x55	1000	260000
2000T/10000	20000	10000	8000	700	400	1000	2x55	1000	290000
2000T/12000	20000	12000	9050	700	400	1000	2x55	1000	320000
2000T/14000	20000	14000	11000	700	400	1000	2x55	1000	350000
3000T/8000	30000	8000	6200	700	400	1000	2x55	1000	/
3000T/10000	30000	10000	8000	700	400	1000	2x55	1000	/
3000T/12000	30000	12000	9050	700	400	1000	2x55	1000	/
3000T/14000	30000	14000	11000	700	400	1000	2x55	1000	/

How can I extend the working life of a press brake?

Regularly inspect the hydraulic oil, lubrication points, tooling condition, electrical connections, guide rails and back gauge system. Correct operation, timely cleaning and scheduled calibration help maintain accuracy and reduce unexpected downtime.

How should I choose press brake tooling for sheet metal bending?

Tooling should be selected according to material thickness, tensile strength, required angle, inner radius and part shape. Standard punches and dies are suitable for common work, while special profiles may require customized tooling.

Is a servo electric press brake suitable for precision bending?

Yes. Servo electric models offer fast response, stable positioning, lower energy consumption and high repeat accuracy. They are especially suitable for small and medium parts requiring frequent setup changes and precise bending.

How do I choose the correct press brake size?

The machine should be selected according to maximum bending length, material thickness, material strength and required tonnage. Additional capacity is recommended when processing high strength steel or parts with demanding bending conditions.

What materials can a CNC press brake process?

A press brake can bend carbon steel, stainless steel, aluminum, galvanized sheet, copper and other metal plates. The required tonnage and tooling vary according to material strength, thickness and bending radius.

What bending accuracy can a modern CNC press brake achieve?

Accuracy depends on the machine structure, CNC system, hydraulic control, crowning system, tooling condition and material consistency. Automatic crowning and angle compensation can improve bending consistency across long workpieces.

Can the machine be customized for my production requirements?

Yes. Custom options may include working length, tonnage, controller, back gauge axes, throat depth, daylight opening, stroke, tooling, safety system, voltage, robotic loading and automatic angle measurement.

Is installation and operator training available?

Suppliers can provide installation manuals, operating videos, remote guidance and online programming support. Onsite installation and training may also be arranged according to the destination, machine configuration and service conditions.
