Home / All / Press Brake / RWP-Robot Series Robotic Press Brake Automated Bending Cell CNC Robot Press Brake for Sheet Metal Fabrication

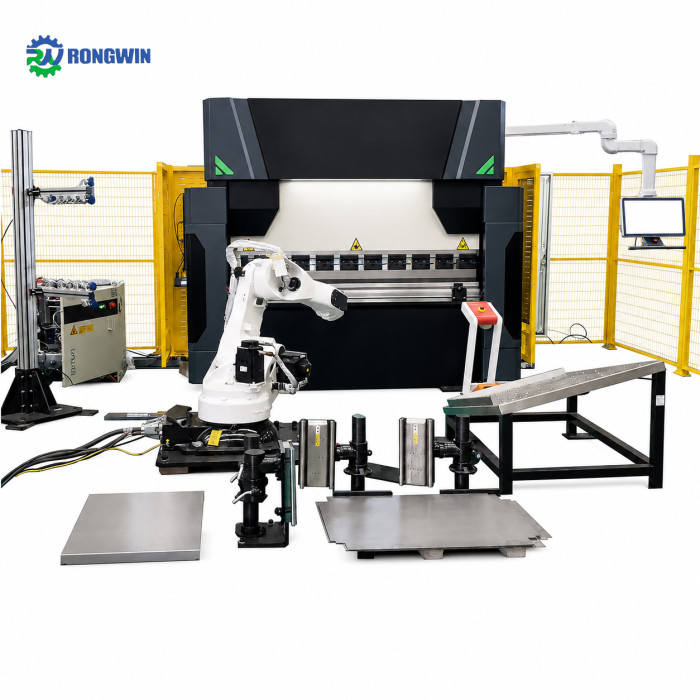

RWP-Robot Series Robotic Press Brake Automated Bending Cell CNC Robot Press Brake for Sheet Metal Fabrication
Automated Press Brake Robot: Unmanned Bending Cell for High-Volume Production, Steel Parts, Cabinets & Smart Factories
| Share | |
|---|---|
| Categories | Press Brake |
| Brand | MetalWorkMaster Smart Custom Metal Solution Expert |
| Model | RWP-Robot Series |
| Color | yellow |
| country of origin | Anhui |
| Applicable industries | Manufacturing Plant |
| weight | 260 |
| marketing type | Hot Product 2024 |
| core components | PLC Engine Motor Gearbo Gear |
| Core component shelf life | 1 year |
| brand | RONGWIN |
| Unit Price | US $ 8800 / set |
| FOB port | shanghai |
| Terms of Payment | L/C, T/T |
Detail Information

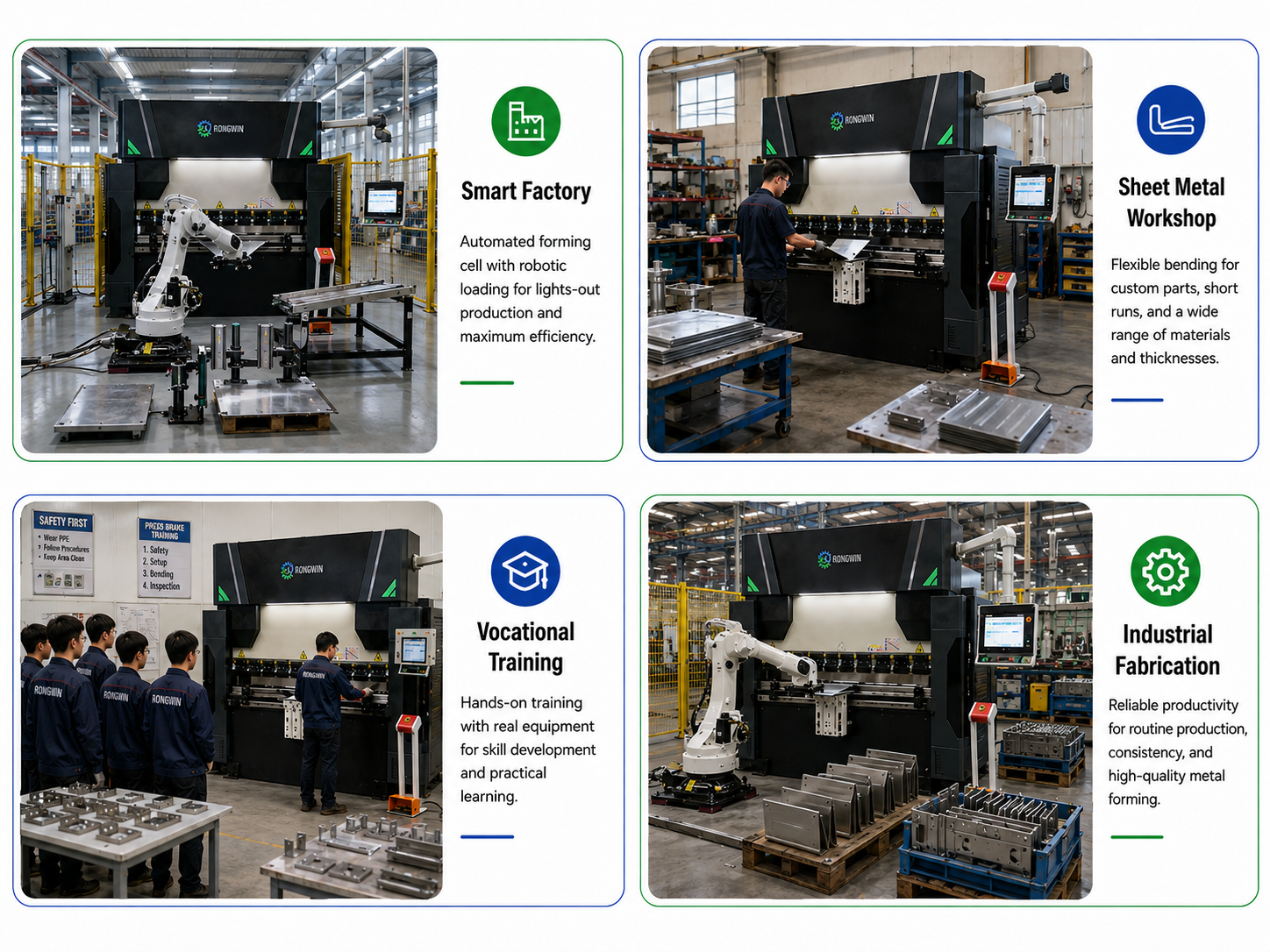

RWP-Robot Application Scenario

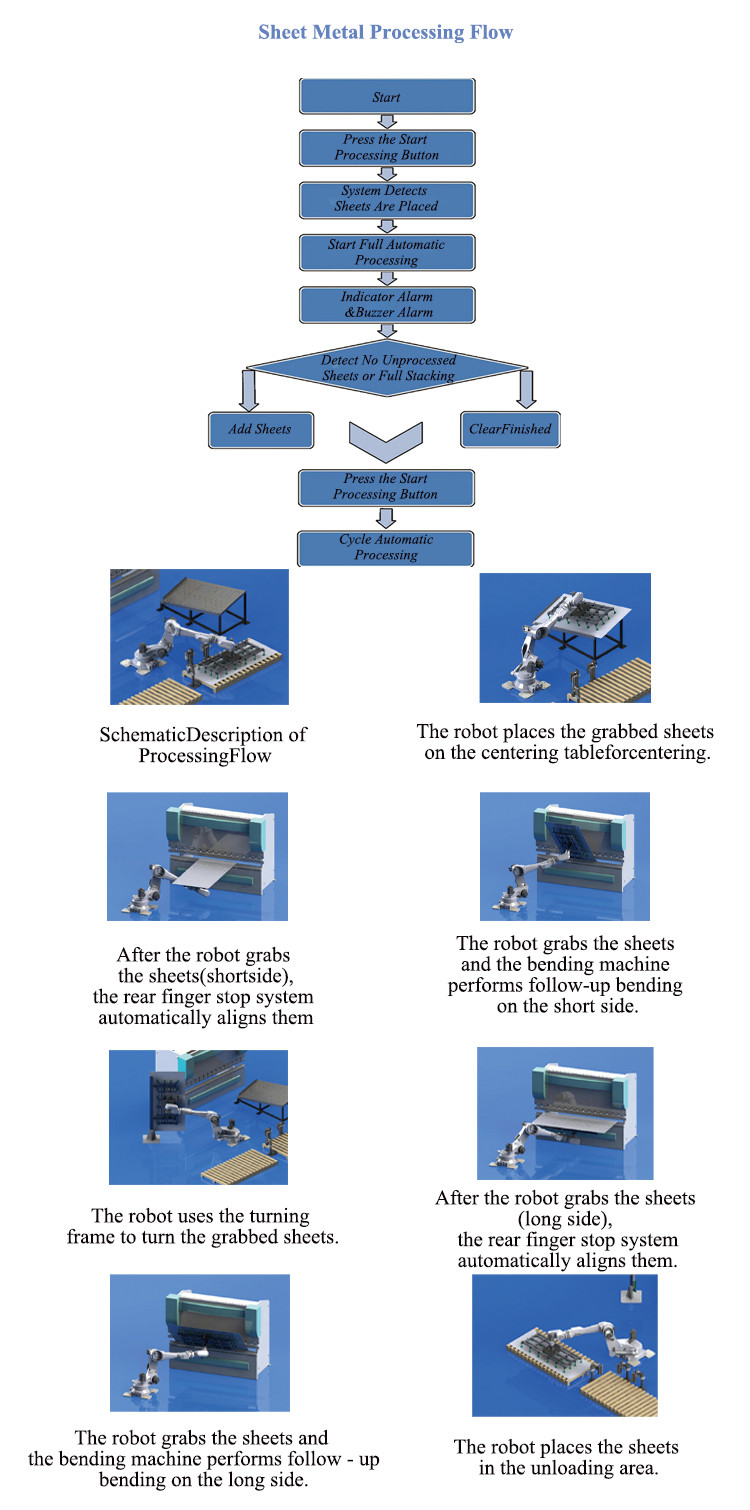

RWP-Robot Automated Bending Production Line

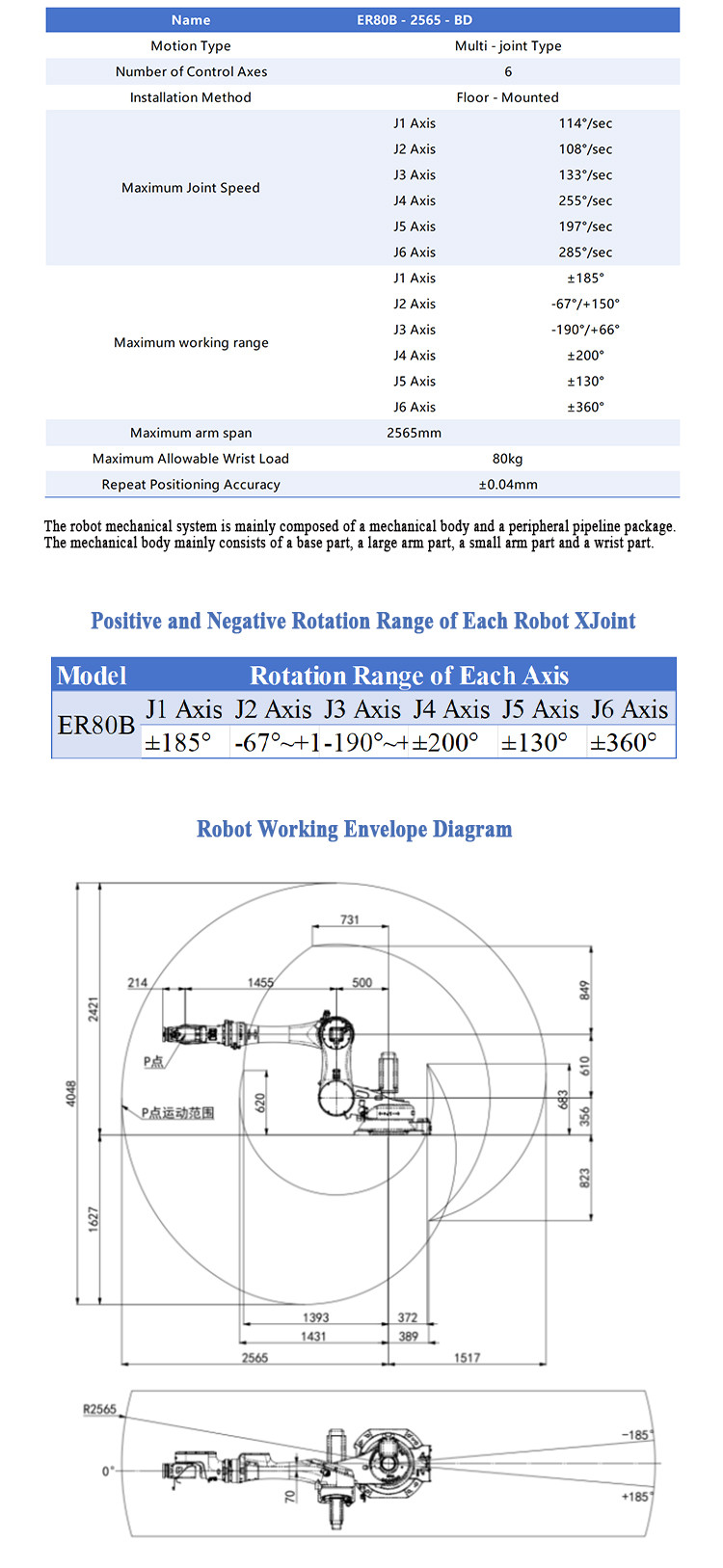

RWP-Robot Technical specifications

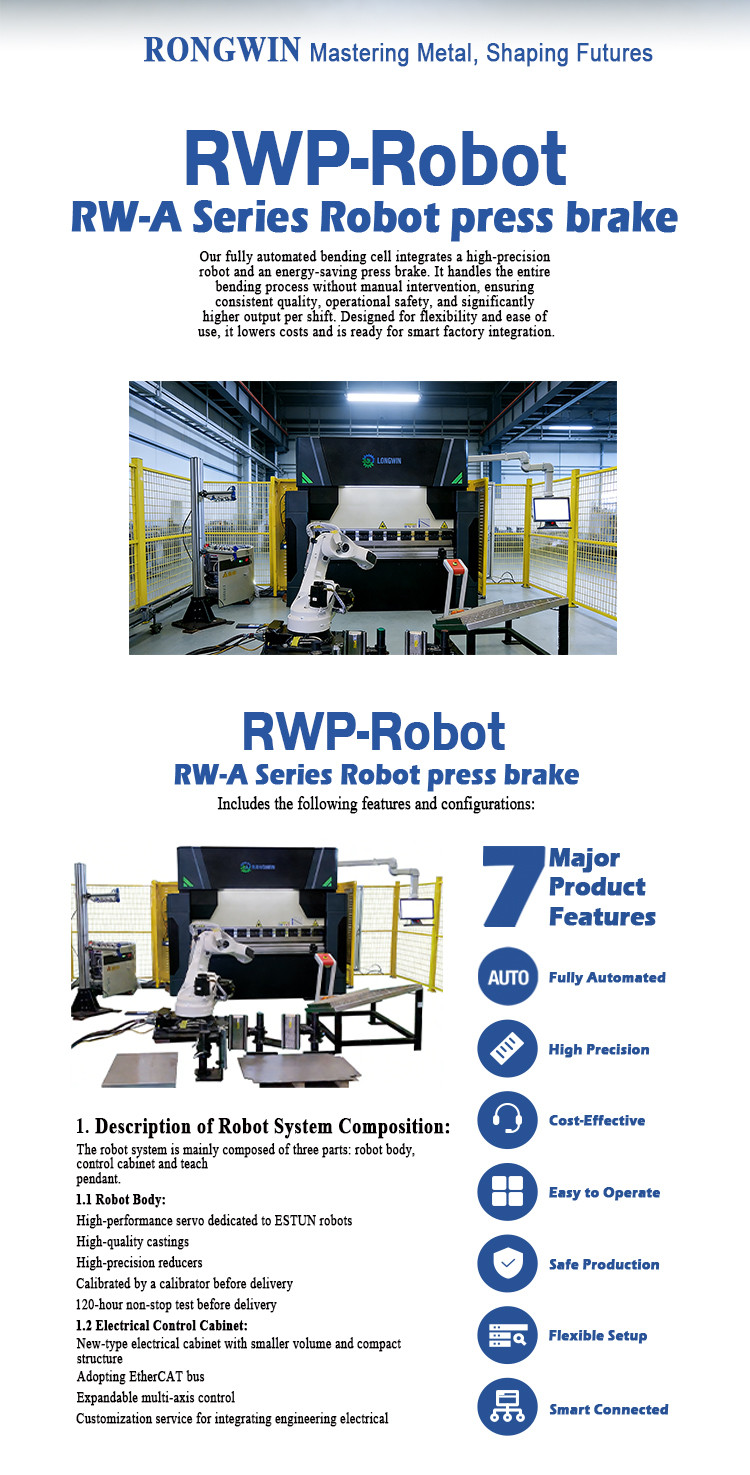

RWP-Robot Series Key Advantages
Fully Automated Bending Cell The integrated robotic press brake completes material loading, positioning, bending, turning, stacking, and unloading with minimal manual intervention.
High Precision Robotic Bending Advanced CNC control and intelligent robot positioning deliver accurate bending angles, consistent dimensions, and stable quality throughout continuous production.
Flexible Production Capability The automated bending cell supports different workpiece sizes, bending sequences, tooling configurations, and production batches for flexible sheet metal manufacturing.
Increased Production Efficiency Automatic material handling and continuous bending reduce cycle time, increase daily output, and support efficient unattended production.
Lower Labor Requirements Robotic press brake automation reduces dependence on skilled operators, minimizes repetitive manual work, and helps manufacturers control long term labor costs.
Consistent Bending Quality Precise robot movement and stable press brake control ensure repeatable processing results while reducing positioning errors and material waste.
Wide Industrial Applications Suitable for electrical cabinets, elevator components, automotive parts, machinery covers, kitchen equipment, construction materials, and general metal fabrication.
Intelligent Safety Protection The bending cell can integrate safety fences, light curtains, sensors, access doors, and intelligent monitoring systems to provide reliable operational protection.

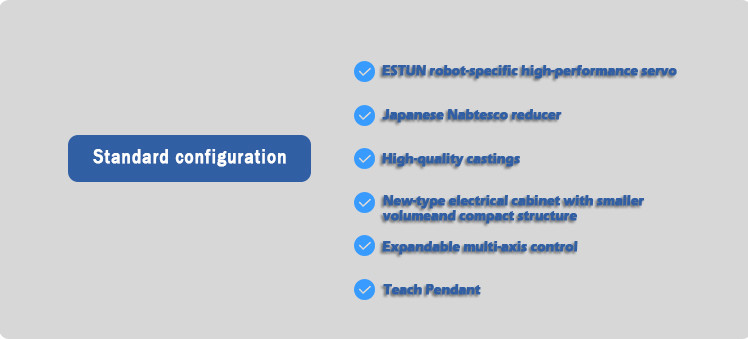

Customizable System Configuration Robot brand, press brake capacity, working length, CNC controller, gripper, tooling, loading station, and stacking system can be customized according to production requirements.
Reliable RONGWIN Support RONGWIN provides solution design, machine manufacturing, system integration, installation guidance, operator training, technical support, and global after sales service.
|
Name
|
RWP-Robot
|
|
Action type
|
Multiple joints
|
|
Number of control axes
|
Number of control axes
|
|
Number of control axes
|
Floor decoration
|
Maximum joint speed J1axis | 145°/sec |
Maximum joint speed J2axis | 105°/sec |
Maximum joint speed J2axis | 170°/sec |
Maximum joint speed J4axis | 320°/sec |
Maximum joint speed J5axis | 320°/sec |
Maximum joint speed J6axis | 450°/sec |
Maximum activity radius | 1.6m |
Maximum allowable load on wrist | 30Kg |
Additional load allowed on third axis | 10Kg |
Repeat positioning accuracy | ±0.1mm |
RWP-Robot Other Applications
Can press brake programming software reduce bending errors?
Yes. Programming and simulation software can calculate bending sequences, detect possible collisions, estimate tool requirements and preview finished parts before production. This helps reduce material waste and machine setup time.
Is a servo electric press brake suitable for precision bending?
Yes. Servo electric models offer fast response, stable positioning, lower energy consumption and high repeat accuracy. They are especially suitable for small and medium parts requiring frequent setup changes and precise bending.
What support should a professional press brake supplier provide?
A dependable supplier should provide machine selection advice, tooling recommendations, operating manuals, installation guidance, programming training, spare parts support, remote diagnostics and maintenance assistance throughout the machine service period.
How do I choose the correct press brake size?
The machine should be selected according to maximum bending length, material thickness, material strength and required tonnage. Additional capacity is recommended when processing high strength steel or parts with demanding bending conditions.
What materials can a CNC press brake process?
A press brake can bend carbon steel, stainless steel, aluminum, galvanized sheet, copper and other metal plates. The required tonnage and tooling vary according to material strength, thickness and bending radius.
What bending accuracy can a modern CNC press brake achieve?
Accuracy depends on the machine structure, CNC system, hydraulic control, crowning system, tooling condition and material consistency. Automatic crowning and angle compensation can improve bending consistency across long workpieces.
Can the machine be customized for my production requirements?
Yes. Custom options may include working length, tonnage, controller, back gauge axes, throat depth, daylight opening, stroke, tooling, safety system, voltage, robotic loading and automatic angle measurement.
Is installation and operator training available?
Suppliers can provide installation manuals, operating videos, remote guidance and online programming support. Onsite installation and training may also be arranged according to the destination, machine configuration and service conditions.
