Home / All / Press Brake / RWP-Servo Series｜Servo Pump Energy Saving Press Brake CNC Servo Hydraulic Press Brake Sheet Metal Bending Machine

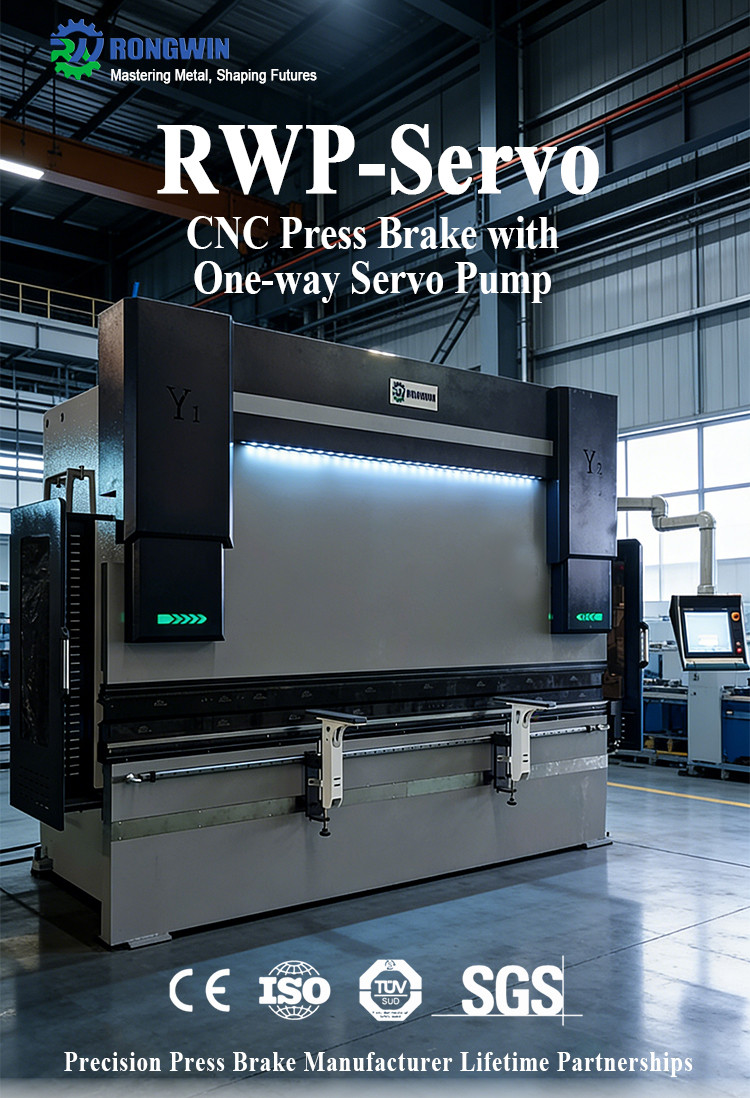

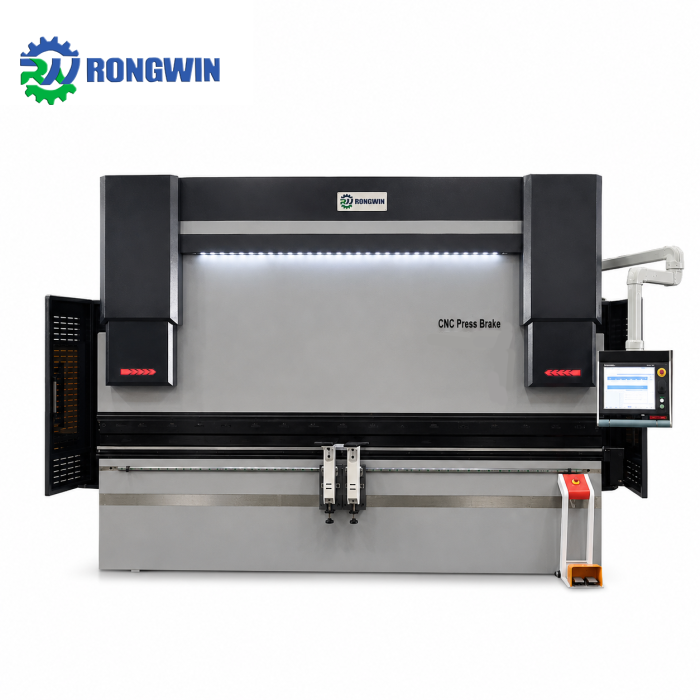

RWP-Servo Series｜Servo Pump Energy Saving Press Brake CNC Servo Hydraulic Press Brake Sheet Metal Bending Machine
Cost-Effective Bending Machine: Easy Operation for Plate Forming, Small Batch Production, Hardware Shops & Metal Processing
| Share | |
|---|---|
| Categories | Press Brake |
| Brand | MetalWorkMaster Smart Custom Metal Solution Expert |
| Model | RWP-Servo Series |
| color | Blue and white |
| Machine Type | Synchronized |
| Degree of automation | Fully Automatic |
| Degree of oldness | New |
| country of origin | China |
| Machinable materials | Brass/ Copper, Stainless steel, Carbon steel |
| Core selling point | High-accuracy |
| Warranty | 3 years |
| Applicable industries | Hotels, Machinery Repair Shops |
| Marketing Type | New Product 2024 |
| Mechanical test report | Provided |
| Video factory inspection | Provided |
| Core component warranty period | 1 Year |
| Unit Price | US $ 24806-35732 / ton |
| FOB port | shanghai |
| Terms of Payment | L/C, T/T |
Detail Information
RWP-Servo Series Core Compo
nents
Hydraulic valve group
Main motor
Stop finger
Fast clamp
Press brake tooling
Foot switch
Front support
Back gauge

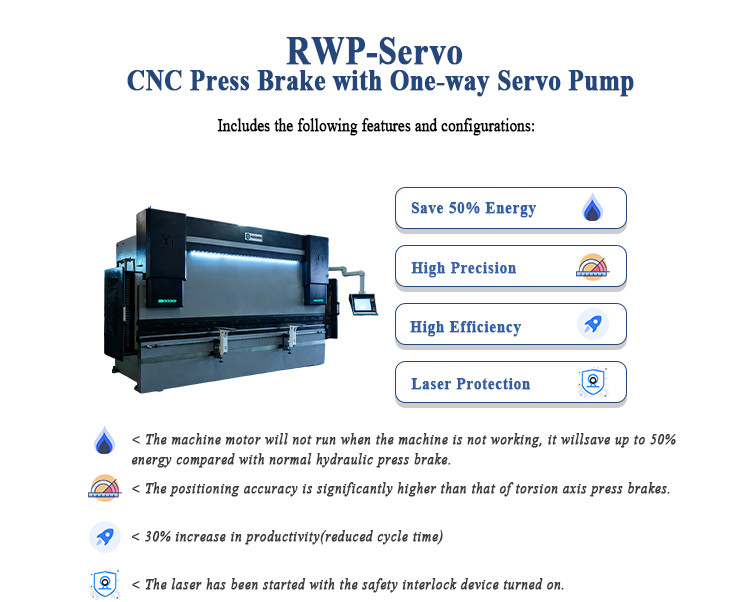

RWP-Servo Series Key Advantages

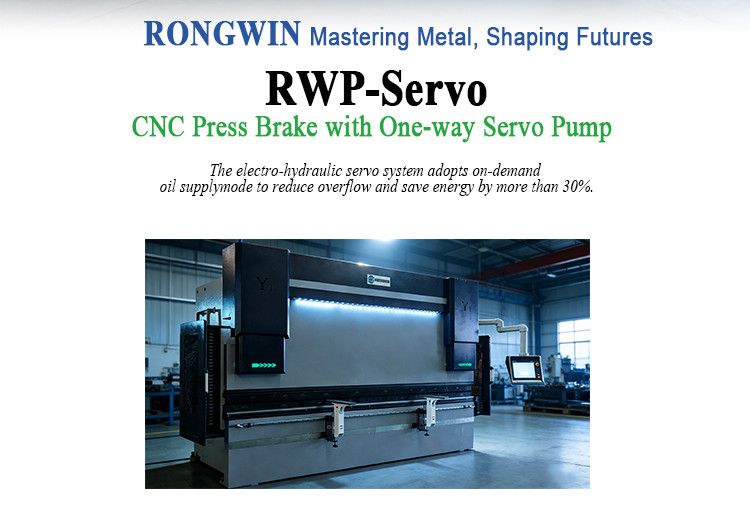

The servo pump system adjusts oil flow according to actual bending demand, reducing energy consumption, heat generation, and operating noise while improving production efficiency.
Advanced CNC control enables accurate positioning, stable angle control, and consistent bending results for both single piece processing and continuous batch production.
The servo driven hydraulic system provides quick pressure response, shorter working cycles, and smooth machine operation to increase daily production capacity.
High quality hydraulic components ensure reliable pressure output, precise movement control, and long term operational stability under demanding production conditions.

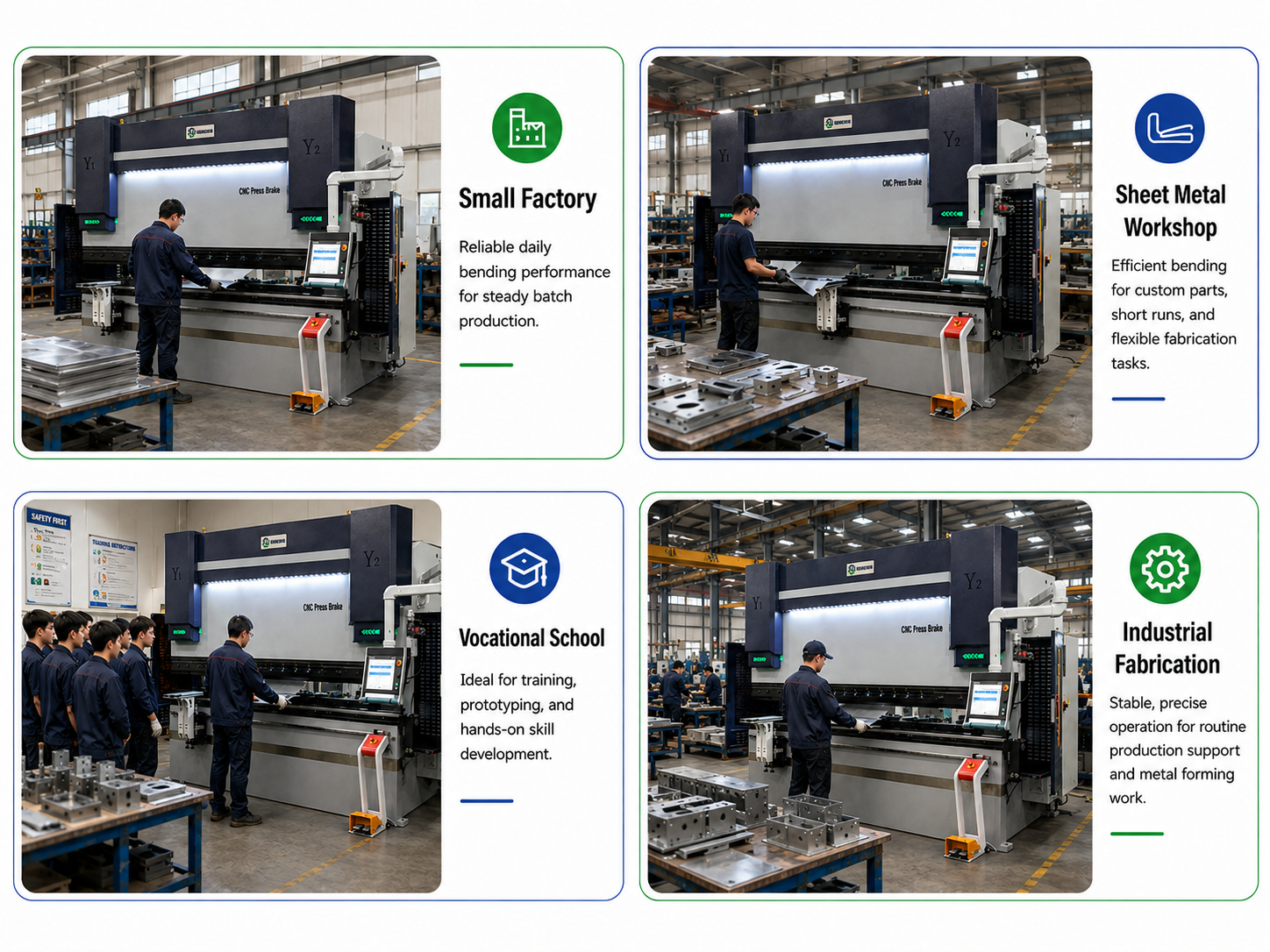

Suitable for bending carbon steel, stainless steel, aluminum, galvanized sheet, and other metal materials used in electrical cabinets, machinery, construction, automotive parts, and metal fabrication.

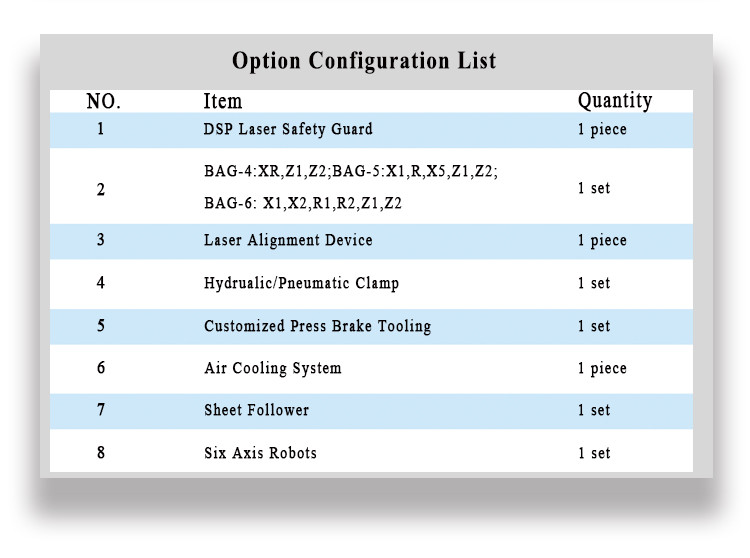

The controller, back gauge axes, tooling, safety protection system, throat depth, working length, and bending capacity can be customized for different processing requirements.
Reduced power consumption, lower oil temperature, less system wear, and simplified maintenance help manufacturers control production costs and achieve better long term value.
RONGWIN provides professional machine production, strict quality inspection, customized solutions, operator training, technical guidance, and responsive global after sales support.
Press Brake | Nominal
Pressure
(mm) | Bending
Length
(mm) | Poles
distance
(mm) | Throat
depth
(mm) | SlipperStroke(mm) | Max
Opening
Height
(mm) | Main
motor
(KW) | Travel
(mm) | Weight
(Kg) |
40T/1600 | 400 | 1600 | 1260 | 300 | 150 | 420 | 5.5 | 500 | 3800 |
63T/2500 | 630 | 2500 | 2000 | 300 | 150 | 420 | 5.5 | 500 | 4800 |
80T/2500 | 800 | 2500 | 2000 | 350 | 200 | 480 | 7.5 | 600 | 5700 |
|
100T/3200
|
1000
|
3200
|
2700 | 400 |
200/250
|
480/520 | 7.5 | 600 | 8500 |
|
100T/4000
|
1000
|
4000
|
3600 | 400 |
200/250
|
480/520 | 7.5 | 600 | 9300 |
|
160T/3200
|
1600
|
3200
|
2700 | 400 |
200/250
|
480/520 | 11 | 600 | 9500 |
160T/4000 | 1600 | 4000 | 3600 | 400 | 200/250 | 480/520 | 11 | 600 | 12100 |
|
200T/3200
|
2000
|
3200
|
2700 | 400 |
250
|
530 | 15 | 600 | 11000 |
200T/4000 | 2000 | 4000 | 3600 | 400 | 250 | 530 | 15 | 600 | 13500 |
250T/3200 | 2500 | 3200 | 2700 | 400 | 250 | 530 | 18.5 | 600 | 13000 |
250T/4000 | 2500 | 4000 | 3600 | 400 | 250 | 530 | 18.5 | 600 | 15500 |
250T/5000 | 2500 | 5000 | 4300 | 400 | 250 | 530 | 22 | 600 | 18000 |
300T/3200 | 3000 | 3200 | 2700 | 400 | 300 | 580 | 22 | 600 | 19200 |
300T/4000 | 3000 | 4000 | 3600 | 400 | 300 | 580 | 22 | 600 | 22500 |
400T/4000 | 4000 | 4000 | 3600 | 400 | 320 | 580 | 30 | 600 | 25500 |
400T/5000 | 4000 | 5000 | 4000 | 400 | 320 | 580 | 30 | 600 | 31500 |
500T/4000 | 5000 | 4000 | 3500 | 500 | 320 | 590 | 37 | 600 | 34500 |
500T/5000 | 5000 | 5000 | 4000 | 500 | 320 | 590 | 37 | 800 | 43500 |
500T/6000 | 5000 | 6000 | 5000 | 500 | 320 | 590 | 37 | 800 | 53000 |
600T/5000 | 6000 | 5000 | 4000 | 500 | 320 | 640 | 45 | 800 | 57000 |
600T/6000 | 6000 | 6000 | 5000 | 500 | 320 | 640 | 45 | 800 | 68000 |
600T/7000 | 6000 | 7000 | 6000 | 500 | 320 | 640 | 45 | 800 | 79000 |
800T/6000 | 8000 | 6000 | 5000 | 600 | 400 | 800 | 55 | 800 | 90000 |
800T/7000 | 8000 | 7000 | 6000 | 600 | 400 | 800 | 55 | 800 | 105000 |
800T/8000 | 8000 | 8000 | 7000 | 600 | 400 | 800 | 55 | 800 | 120000 |
1000T/6000 | 10000 | 6000 | 5000 | 600 | 400 | 800 | 2x37 | 800 | 100000 |
1000T/8000 | 10000 | 8000 | 6900 | 700 | 400 | 800 | 2x37 | 800 | 130000 |
1000T/10000 | 10000 | 10000 | 8000 | 700 | 400 | 800 | 2x37 | 800 | 150000 |
1200T/6000 | 12000 | 6000 | 4220 | 700 | 400 | 1000 | 2x45 | 1000 | 130000 |
1200T/7000 | 12000 | 7000 | 5220 | 700 | 400 | 1000 | 2x45 | 1000 | 160000 |
1600T/6000 | 16000 | 6000 | 4900 | 700 | 400 | 1000 | 2x55 | 1000 | 150000 |
1600T/7000 | 16000 | 7000 | 5900 | 700 | 400 | 1000 | 2x55 | 1000 | 170000 |
1600T/8000 | 16000 | 8000 | 6900 | 700 | 400 | 1000 | 2x55 | 1000 | 190000 |
1600T/10000 | 16000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | 210000 |
2000T/8000 | 20000 | 8000 | 6200 | 700 | 400 | 1000 | 2x55 | 1000 | 260000 |
2000T/10000 | 20000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | 290000 |
2000T/12000 | 20000 | 12000 | 9050 | 700 | 400 | 1000 | 2x55 | 1000 | 320000 |
2000T/14000 | 20000 | 14000 | 11000 | 700 | 400 | 1000 | 2x55 | 1000 | 350000 |
3000T/8000 | 30000 | 8000 | 6200 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/10000 | 30000 | 10000 | 8000 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/12000 | 30000 | 12000 | 9050 | 700 | 400 | 1000 | 2x55 | 1000 | / |
3000T/14000 | 30000 | 14000 | 11000 | 700 | 400 | 1000 | 2x55 | 1000 | / |
Can press brake programming software reduce bending errors?
Yes. Programming and simulation software can calculate bending sequences, detect possible collisions, estimate tool requirements and preview finished parts before production. This helps reduce material waste and machine setup time.
Is a servo electric press brake suitable for precision bending?
Yes. Servo electric models offer fast response, stable positioning, lower energy consumption and high repeat accuracy. They are especially suitable for small and medium parts requiring frequent setup changes and precise bending.
How do I choose the correct press brake size?
The machine should be selected according to maximum bending length, material thickness, material strength and required tonnage. Additional capacity is recommended when processing high strength steel or parts with demanding bending conditions.
Why is a CNC press brake more efficient than a conventional machine?
A CNC press brake automatically controls the ram position, back gauge movement, bending angle and working sequence. It improves accuracy, reduces setup time, lowers operator dependence and supports repeat production of complex parts.
What materials can a CNC press brake process?
A press brake can bend carbon steel, stainless steel, aluminum, galvanized sheet, copper and other metal plates. The required tonnage and tooling vary according to material strength, thickness and bending radius.
What bending accuracy can a modern CNC press brake achieve?
Accuracy depends on the machine structure, CNC system, hydraulic control, crowning system, tooling condition and material consistency. Automatic crowning and angle compensation can improve bending consistency across long workpieces.
Can the machine be customized for my production requirements?
Yes. Custom options may include working length, tonnage, controller, back gauge axes, throat depth, daylight opening, stroke, tooling, safety system, voltage, robotic loading and automatic angle measurement.
Is installation and operator training available?
Suppliers can provide installation manuals, operating videos, remote guidance and online programming support. Onsite installation and training may also be arranged according to the destination, machine configuration and service conditions.
