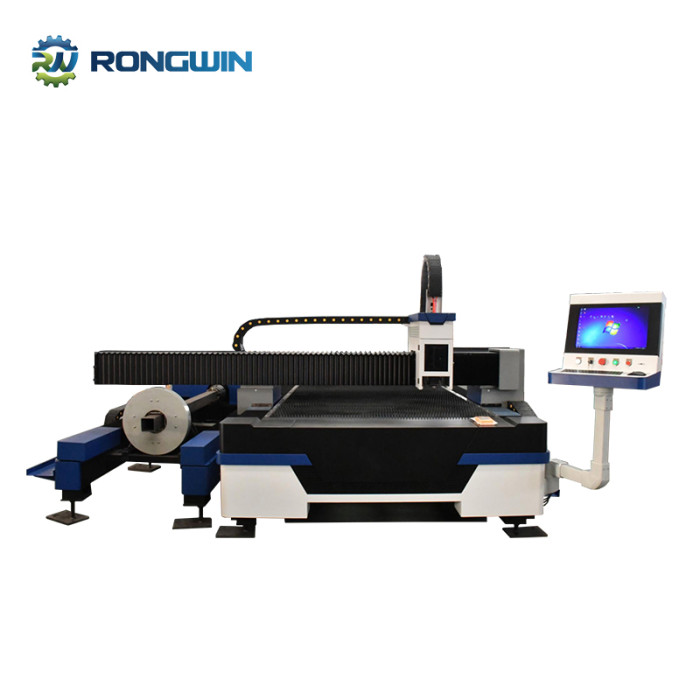

RONGWIN Customizable plate & pipe cutting machine | Stainless Steel Fiber 3000w
RONGWIN Fiber Laser Cutter delivers precise, clean cuts for sheet and pipe with high speed performance.
- Price
- US $
80000-30000
- Model
- Laser Cutting Machine CNC Cutting with Pipe Machine
- Unit Price
Order Quantity Unit Price Delivery period 1 - 3 US $80000.0/piece 30 day 4 - 10 US $30000.0/piece 90 day
- Quantity
Detail Information
- Laser Type:Fiber Laser
- Applying Materials:Metal Laser Cutting Machine
- Degree of Oldness:New
- Country of Origin:China
- Industrial Laser Brand:IPG
- Core Selling Point:Long Service Life
- Warranty:3 Years
- Province:Anhui
- Cooling Method:Water Cooling
- Laser Machine Control System Brand:Cypcut
Plate & Pipe Cutting Machine Introduction
High-Quality Double Drive Fiber Laser Cutting Machine for Metal Plates and Tubes
High quality double drive tube plate metal fiber laser cutting machine is equipped with the most advanced international imported fiber laser source which generates powerful laser focused on objects to cause instant melting and evaporation.Automatic cutting is controlled by digitalized mechanic system.This hi-tech machine has condensed the advanced technologies of fiber laser,digital,and precise mechanics.
Applicable to fast cutting on plate or tube in metal,mainly for cutting on SS,carbon steel,Manganese steel ,galvanized plate,alloy plate,rare metal.
Widely used in kitchen appliance,electric control box,high-resolute device,mechanical equipment,electrical equipment,lighting,posters,auto parts,display equipment,hardware and metal processing.
Plate & Pipe Cutting Machine Application Scenario
Advantages
Feature 1
Raytools high precision laser cutting head
1. The internal structure of the laser head is completely sealed, and the dustproof grade reaches 6 grade to 7 grade, which can avoid the dust pollution of the optical part;
2. Magnetic protection against collision, flexible and convenient to reset and alarm function;
3. The cutting height is set by panel operation or programmable CNC control;
4. The height control can be realized through the Z axis servo motor and the drive system;
5. Modular design, high precision, easy maintenance.
Feature 2
Fuselage structure
1. The main frame adopts the gantry structure and the whole bed is welded,to ensure the long term stability and no deformation of the machine.
2. Machine tool bed is processed by gantry milling machine and is formed at one time.
3. The whole machine is tempered at high temperature,the internal stress is eliminated with the furnace cooling.
4. Using double rack rails,double servo drive structure.
Plate & Pipe Cutting Machine Technical Parameters
Laser Cutting Machine CNC Cutting with Pipe Machine offers a variety of models, covering a variety of needs from small to large, the specific technical parameters range as follows:
Model | RWLG-3015G | RWLG-4015G | RWLG-6015G | RWLG-6020G |
Cutting range | 3000*1500 | 4000*1500 | 6000*1500 | 6000*2000 |
X-axs travel | 3020 | 4020 | 6020 | 6020 |
y-axis travel | 1520 | 1520 | 1520 | 2020 |
z-axis travel | 120 | 120 | 120 | 120 |
Maximum positfoning speed | 100m/min | 100m/min | 100m/min | 100m/min |
positioning accuracy | ±0.05 | ±0.05 | ±0.05 | ±0.05 |
Repeat positioning accuracy | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
|
Tube processing dimenslon
|
Ф20-150/20-100
|
Ф20-150/20-100
|
Ф20-150/20-100
|
Ф20-150/20-100 |
Overall dimensions | 4600*2750*1750 | 5600*2750*1750 | 7600*2750*1750 | 7600*3250*1750 |
Tube plate machine Dimensions | 4600*3350*1750 | 5600*3350*1750 | 7600*3350*1750 | 7600*3850*1750 |
Laser output power | 500W--2000W | 500W--2000W | 500W--2000W | 500W--2000W |
Parameters within this range reflect the wide applicability of the Laser Cutting Machine CNC Cutting with Pipe Machine in different application scenarios, from small and medium-sized precision processing to large-scale industrial manufacturing.
Plate & Pipe Cutting Machine Details Display
Bed
Electrical cabinet
Laser head
Chuck
Plate & Pipe Cutting Machine FAQ
What materials can the RONGWIN Laser Cutting Machine cut?
The RONGWIN Laser Cutting Machine is capable of cutting a variety of materials including stainless steel, carbon steel, aluminum, brass, and other metals. It works efficiently on both metal sheets and pipes.
What is the power of the laser source?
The machine is equipped with a 3000W fiber laser source, which provides high cutting efficiency and precision for various applications.
How thick of materials can the laser cutting machine handle?
The RONGWIN 3000W Laser Cutting Machine can cut materials up to a certain thickness depending on the type of material. Typically, it can handle materials from 0.5mm to 20mm thick, depending on the metal.
Is the laser cutting machine easy to operate?
Yes, the machine features an advanced CNC system, which allows for easy programming and operation. Its user-friendly interface helps operators set parameters and control the cutting process seamlessly.
