Home / All / Metalworking Machinery / Metal Cutting Machine / Fiber Laser Cutting Machine / Sealed Double-Table Fiber Laser Cutting Machine | RONGWIN Exchange Platform CNC Metal Cutter
Sealed Double-Table Fiber Laser Cutting Machine | RONGWIN Exchange Platform CNC Metal Cutter
Sealed double-table fiber laser cutter with exchange platform. IPG laser, 0.03mm precision, 3-year warranty.
| Share | |
|---|---|
| Categories | Fiber Laser Cutting Machine |
| Brand | MetalWorkMaster Smart Custom Metal Solution Expert |
| Model | Double table seal fiber laser cutting machine |
| Laser Type | Fiber Laser |
| Applying Materials | Metal Fiber Laser Metal Cutting Machine |
| Degree of Oldness | New |
| Country of Origin | China |
| Industrial Laser Brand | IPG |
| Core Selling Point | Long Service Life |
| Warranty | 3 Years |
| Operation Mode | Continuous Wave |
| Configuration | Gantry Type |
| Unit Price | US $ 4800-5000 / piece |
| FOB port | shanghai |
| Terms of Payment | L/C, T/T |
Detail Information
Sealed Double-Table Fiber Laser Cutting Machine Overview
The RONGWIN sealed double-table fiber laser cutting machine is engineered for high-speed, continuous metal fabrication. Featuring an automatic exchange platform, this CNC laser cutter minimizes idle time by loading and unloading materials while cutting is in progress on the second table. The fully sealed design protects operators and maintains a clean cutting environment.
Powered by an IPG fiber laser source with power options from 1500W to 30000W, the gantry-type structure delivers positioning accuracy of ≤±0.03mm and repeatability of ≤±0.02mm. Suitable for stainless steel, carbon steel, aluminum, and brass cutting across 10 model series from RWZL-3015B to RWZL-13025B.
- Automatic exchange platform for continuous production
- Fully sealed cutting chamber for operator safety
- ≤±0.03mm positioning accuracy with Cypcut control
- IPG laser source, 1500W to 30000W power range
- 3-year warranty with global service network
Key Advantages of the Double Table Seal Fiber Laser Cutter

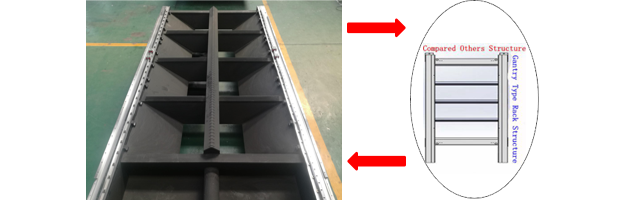

Exchange Platform Design
The dual-table exchange system enables simultaneous loading and cutting. When one table is in the cutting zone, the other is in the loading and unloading position, reducing idle time by up to 50% and maximizing throughput for high-volume production.

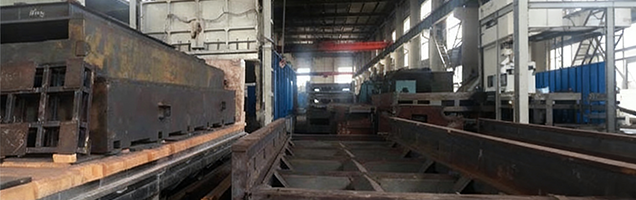

Fully Sealed Cutting Chamber
The enclosed structure contains laser radiation, smoke, and dust within the cutting area. An integrated exhaust system channels fumes to a filtration unit, ensuring a safe working environment and compliance with industrial safety standards.

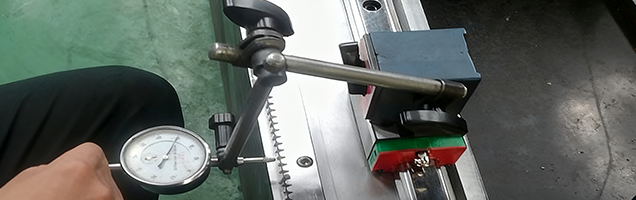

Gantry Type Configuration
The rigid gantry frame provides superior structural stability during high-speed cutting. The dual-drive synchronous system on the Y-axis ensures smooth, vibration-free motion, maintaining consistent cutting quality across the full processing range.
High-Power IPG Laser Source
Available with IPG fiber laser sources from 1500W to 30000W, the machine handles thin sheet cutting at high speed and thick plate cutting with clean edges. The IPG brand delivers over 100,000 hours of service life with minimal maintenance requirements.

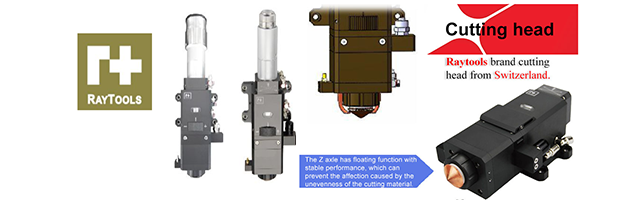

High-Precision Cutting System
Positioning accuracy of ≤±0.03mm and repeatability of ≤±0.02mm are achieved through precision rack-and-pinion drives, Japanese servo motors, and Cypcut control software. Maximum positioning speed reaches 120m/min for efficient production.

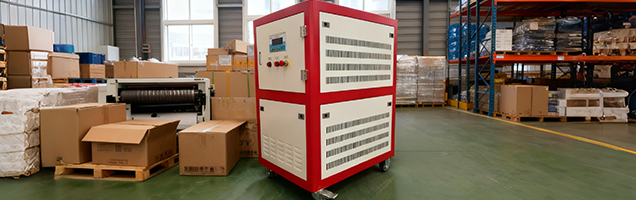

Long Service Life and Reliability
Built with high-grade components and a thermal-stable welded bed, the machine maintains alignment and accuracy over years of continuous operation. Backed by a 3-year warranty and RONGWIN's comprehensive after-sales support network.
Technical Specifications of RWZL-B Series Laser Cutting Machine
The RWZL-B series sealed double-table fiber laser cutting machine is available in 10 model variants covering processing ranges from 3000×1500mm to 13000×2500mm. All models share the same precision standards and laser power options.
| Specification | Details |
|---|---|
| Model series | RWZL-3015B, RWZL-4015B, RWZL-4020B, RWZL-6015B, RWZL-6020B, RWZL-6322B, RWZL-6325B, RWZL-8322B, RWZL-8325B, RWZL-13025B |
| Processing range | 3000*1500mm, 4000*1500mm, 4000*2000mm, 6000*1500mm, 6000*2000mm, 6300*2200mm, 6300*2500mm, 8300*2200mm, 8300*2500mm, 13000*2500mm |
| X-axis travel | 1500mm, 1500mm, 2000mm, 1500mm, 2000mm, 2200mm, 2500mm, 2200mm, 2500mm, 2500mm |
| Y-axis travel | 3000mm, 4000mm, 4000mm, 6000mm, 6000mm, 6300mm, 6300mm, 8300mm, 8300mm, 13000mm |
| Z-axis travel | 250mm |
| Laser power | 1500/2000/3000/4000/6000/8000/10000/12000/15000/20000/30000/others |
| X/Y-axis positioning accuracy | ≤±0.03mm |
| X/Y-axis repeatability positioning accuracy | ≤±0.02mm |
| Maximum positioning speed | 120m/min |
Applications of Double Table Seal Fiber Laser Cutting Machine
The sealed double-table fiber laser cutting machine is widely used across industries for precise metal component fabrication. The exchange platform design is particularly valuable for high-volume production environments where minimizing downtime between cuts is essential.
Automotive Manufacturing
Cutting auto body panels, chassis components, engine brackets, and structural parts with high precision and consistent quality for vehicle production lines.
Sheet Metal Fabrication
Processing stainless steel, carbon steel, and aluminum sheets for enclosures, cabinets, brackets, and custom metal parts with clean, burr-free edges.
Heavy Industry and Construction
Fabricating thick steel plates for structural beams, mining equipment, agricultural machinery, and construction components requiring high-power cutting.
Precision Metal Components
Producing high-accuracy parts for aerospace, electronics, medical devices, and decorative metalwork where tight tolerances and edge quality are critical.
Cutting Samples and Edge Quality
RONGWIN Manufacturing Authority and Quality Assurance
IPG Laser Source
Equipped with genuine IPG fiber laser sources, the industry-leading brand known for beam quality, energy efficiency, and over 100,000 hours of operational life. IPG lasers deliver consistent cutting performance across all power levels from 1500W to 30000W.
Cypcut CNC Control System
The advanced Cypcut CNC control system provides intuitive operation, real-time monitoring, and optimized cutting path planning. Supports common nesting formats and integrates seamlessly with CAD and CAM software for efficient workflow.
3-Year Warranty Coverage
Backed by a comprehensive 3-year warranty covering the laser source, motion system, and control components. RONGWIN's dedicated service team provides installation, training, and ongoing technical support for the full warranty period.
20+ Years of Manufacturing Experience
RONGWIN has over two decades of experience in metal forming and cutting machinery manufacturing. The company operates a modern production facility with strict quality control processes and serves customers in over 80 countries worldwide.
CE Certified
ISO 9001 Quality Management
FDA Compliant Laser Safety
Country of Origin: China
Frequently Asked Questions About Double Table Seal Fiber Laser Cutting Machine
How does the exchange platform work on the double table laser cutting machine?
The exchange platform uses a dual-table system where one table is positioned inside the sealed cutting chamber for processing while the other table is outside for loading and unloading material. When cutting is complete, the tables exchange positions automatically, typically within 15 to 20 seconds. This allows the operator to load the next sheet while the machine is cutting, maximizing productive time and throughput.
What materials can the sealed fiber laser cutting machine process?
The machine cuts stainless steel, carbon steel, aluminum, brass, copper, and other reflective metal materials. Cutting capacity depends on the laser power selected. A 1500W source handles up to 8mm carbon steel, a 6000W source handles up to 25mm, and a 20000W source can cut over 40mm thick steel plates. The sealed design is particularly effective for materials that produce significant fumes during cutting.
What is the difference between sealed and open-structure laser cutting machines?
The sealed design encloses the cutting area, containing laser radiation, smoke, and dust within the chamber. This provides better operator safety, reduced environmental contamination, and improved exhaust filtration efficiency. Open-structure machines offer easier access but require additional safety measures. The sealed design is recommended for facilities prioritizing workplace safety and environmental compliance.
What laser power should I choose for my application?
Laser power selection depends on your material types and thickness ranges. For sheet metal up to 6mm, 1500W to 3000W is sufficient. For mixed thickness up to 16mm, 6000W is recommended. For thick plate cutting up to 30mm and above, 10000W to 30000W options are available. Our technical team can provide a detailed cutting capability chart and recommend the optimal power for your specific requirements.
What after-sales support is provided with the 3-year warranty?
The 3-year warranty covers the laser source, mechanical components, and control system. Support includes free remote technical assistance, on-site installation and training, spare parts supply, and regular maintenance guidance. RONGWIN maintains a global service network with response times under 24 hours for remote support and 48 to 72 hours for on-site service in covered regions.
Get a Quote for Your Double Table Seal Fiber Laser Cutting Machine
Contact our technical team to discuss your cutting requirements. We provide customized solutions based on your material types, thickness ranges, and production volume needs.
Free consultation with our laser cutting engineers
Response within 24 hours
Global shipping and installation support
