Home / All / Metalworking Machinery / Metal Cutting Machine / Fiber Laser Cutting Machine / CNC Fiber Laser Cutting Machine for Plate and Pipe | RONGWIN 3000W-30000W IPG Laser Source
CNC Fiber Laser Cutting Machine for Plate and Pipe | RONGWIN 3000W-30000W IPG Laser Source
RONGWIN CNC fiber laser cutter handles sheet metal and tube with IPG laser, Cypcut CNC, 0.03mm precision, 3-year warranty.
| Share | |
|---|---|
| Categories | Fiber Laser Cutting Machine |
| Brand | MetalWorkMaster Smart Custom Metal Solution Expert |
| Model | Laser Cutting Machine CNC Cutting with Pipe Machine |
| Laser Type | Fiber Laser |
| Applying Materials | Metal Laser Cutting Machine |
| Degree of Oldness | New |
| Country of Origin | China |
| Industrial Laser Brand | IPG |
| Core Selling Point | Long Service Life |
| Warranty | 3 Years |
| Province | Anhui |
| Cooling Method | Water Cooling |
| Laser Machine Control System Brand | Cypcut |
Detail Information

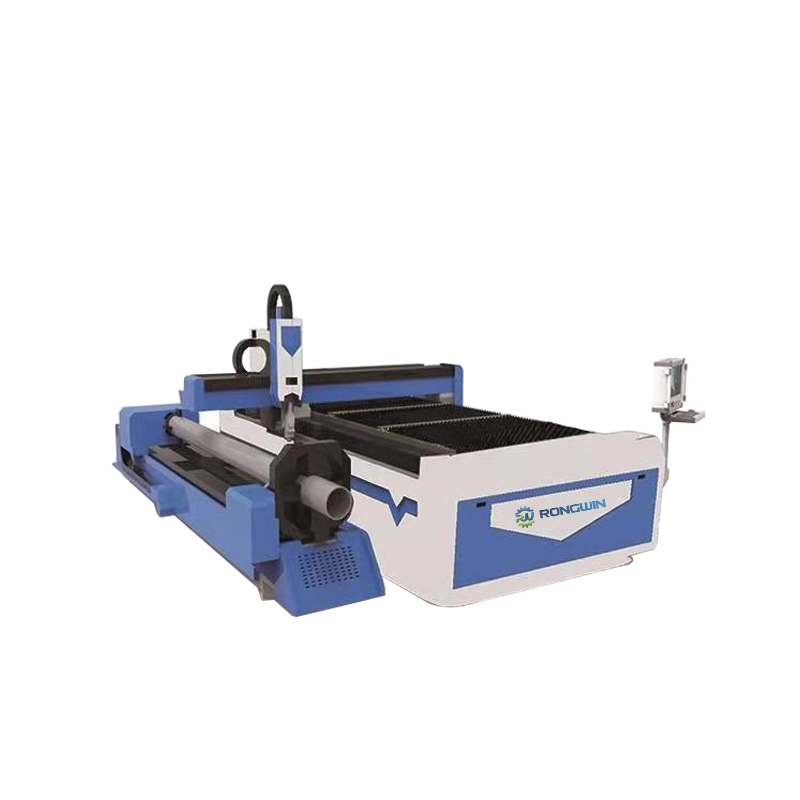

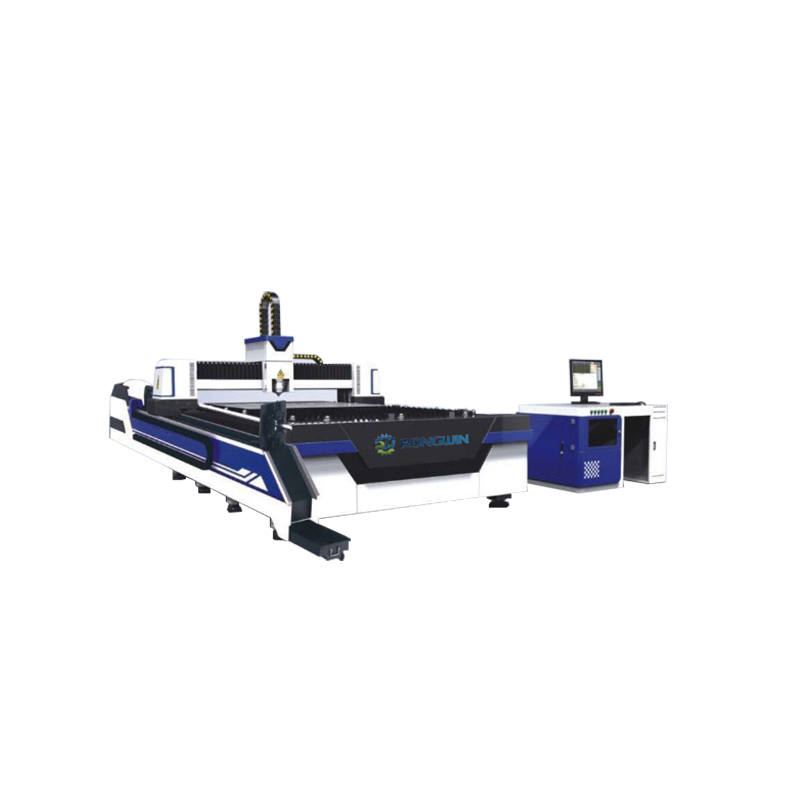

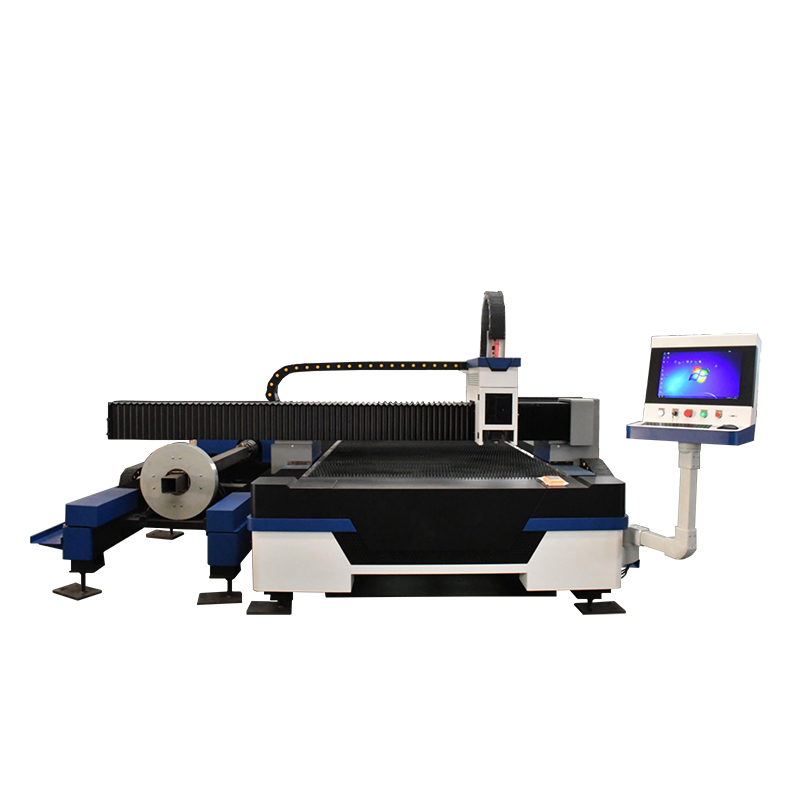

CNC Fiber Laser Cutting Machine for Plate and Pipe | RONGWIN IPG Laser Metal Cutter
RONGWIN CNC fiber laser cutting machine delivers precision sheet metal and tube processing with IPG laser source, Cypcut CNC control system, and positioning accuracy within ≤±0.03mm. Engineered for stainless steel, carbon steel, aluminum, and a wide range of metals, this versatile fiber laser cutter supports 1500W to 30000W power configurations with 3-year warranty coverage.
IPG Fiber Laser Source
Cypcut CNC Control System
≤±0.03mm Positioning Accuracy
Plate & Pipe Dual Processing
1500W–30000W Power Range
3-Year Warranty
Key Features of RONGWIN Plate and Pipe Laser Cutting Machine
High Precision Cutting
X/Y-axis positioning accuracy ≤±0.03mm and repeat positioning accuracy ≤±0.02mm ensure consistent cutting quality across every production run. The rigid gantry structure minimizes vibration for clean, burr-free edges.

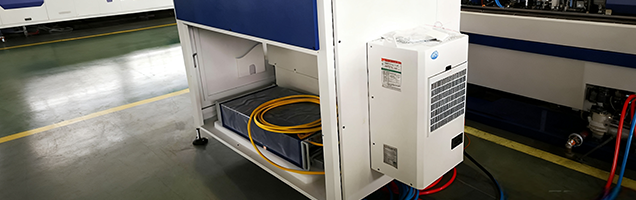

IPG Fiber Laser Source
Equipped with globally recognized IPG fiber laser generators delivering stable beam quality and energy efficiency. IPG laser technology ensures cutting speeds up to 120m/min maximum positioning, reducing per-part processing time significantly.

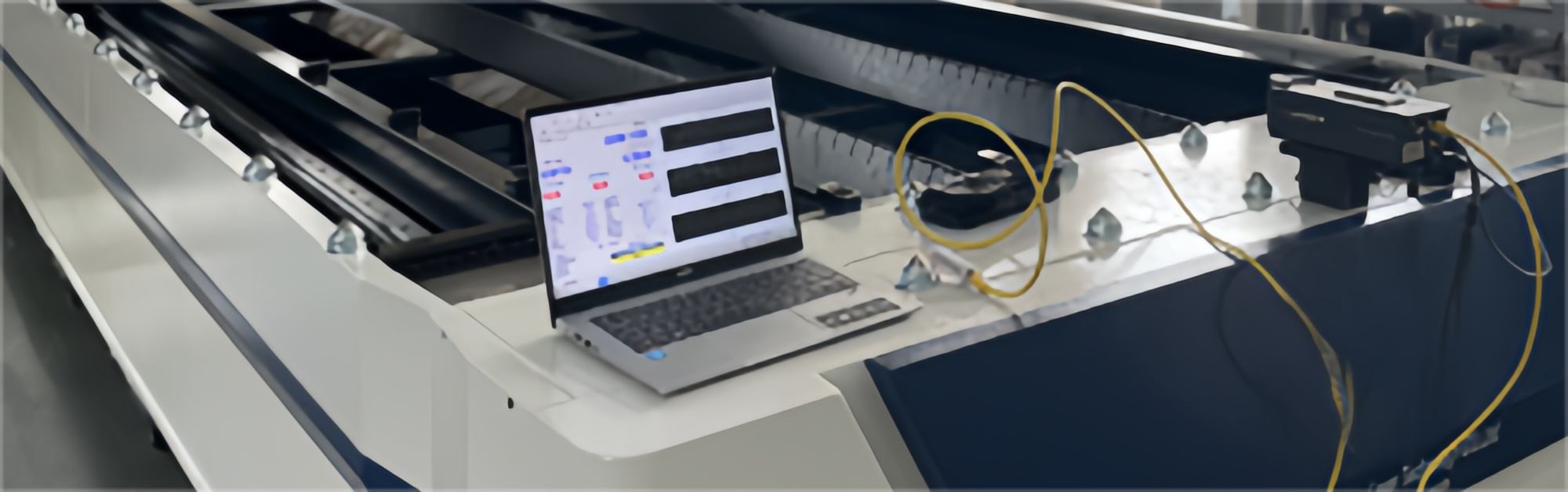

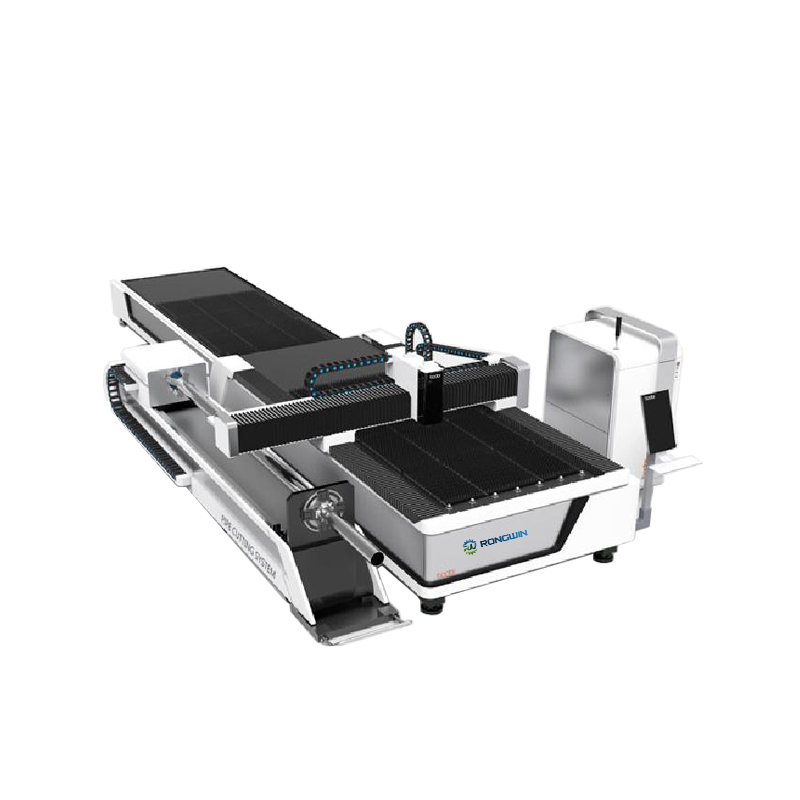

Dual Plate & Pipe Processing
One machine handles both flat sheet metal and round/square tubes. Supports pipe lengths up to 12000mm and diameters Φ165/Φ220/Φ350, eliminating the need for separate equipment and reducing workshop footprint.

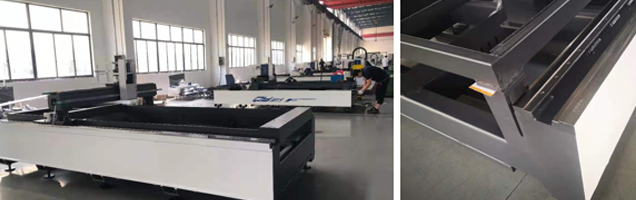

Cypcut CNC Control System
Cypcut advanced CNC laser control software provides intuitive operation, automatic nesting optimization, and real-time cutting parameter adjustment. Supports importing drawings from CAD, reducing programming time for complex geometries.
Wide Power Range 1500W-30000W
Flexible laser power configurations from 1500W to 30000W adapt to different material thicknesses and production volumes. Cut thin sheets at high speed or thick plates with clean edges using the same machine platform.

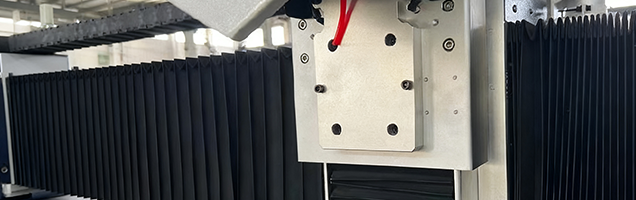

Efficient Water Cooling
Industrial-grade water cooling system maintains optimal laser operating temperature for continuous 24/7 production. Extends component lifespan and ensures consistent beam quality throughout long production shifts.

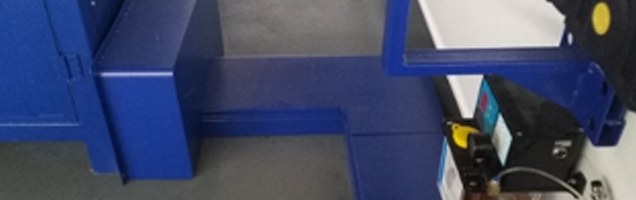

9 Model Configurations
Available in 9 platform sizes from RWLG-3015G to RWLG-130225G covering plate processing ranges from 3000×1500mm to 13000×2500mm. Select the right size for your typical workpieces without over-investing in unnecessary capacity.

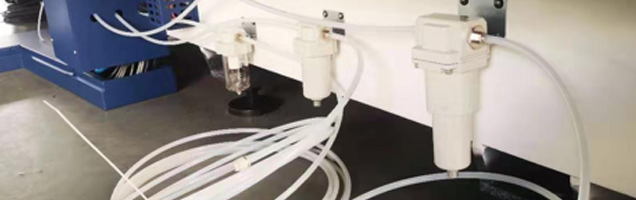

Long Service Life Design
Engineered for durability with premium components including IPG laser source and precision linear guides. Backed by 3-year warranty, the machine is designed for years of reliable operation in demanding metal fabrication environments.
Technical Specifications
Comprehensive specification table for RONGWIN RWLG series CNC fiber laser cutting machines. All models share common precision parameters while offering different plate and pipe processing dimensions.
| Parameter | Specification by Model | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model series | RWLG-3015G | RWLG-4015G | RWLG-4020G | RWLG-6015G | RWLG-6020G | RWLG-6322G | RWLG-6325G | RWLG-8325G | RWLG-130225G |
| Plate processing range | 3000*1500mm | 4000*1500mm | 4000*2000mm | 6000*1500mm | 6000*2000mm | 6300*2200mm | 6300*2500mm | 8300*2500mm | 13000*2500mm |
| X-axis travel | 1500mm | 1500mm | 2000mm | 1500mm | 2000mm | 2200mm | 2500mm | 2500mm | 2500mm |
| Y-axis travel | 3000mm | 4000mm | 4000mm | 6000mm | 6000mm | 6300mm | 6300mm | 8300mm | 13000mm |
| Z-axis travel | 100mm | ||||||||
| Laser power | 1500/2000/3000/4000/6000/8000/10000/12000/15000/20000/30000/others | ||||||||
| Cut pipe length | 6000mm/9000mm/12000mm+others | ||||||||
| Cutting pipe diameter | Φ165/Φ220/Φ350/others | ||||||||
| X/Y-axis positioning accuracy | ≤±0.03mm | ||||||||
| X/Y-axis repeat positioning accuracy | ≤±0.02mm | ||||||||
| Maximum positioning speed | 120m/min | ||||||||
Laser & Control System
| Laser Type | Fiber Laser |
| Laser Brand | IPG (Industrial Laser) |
| Control System | Cypcut |
| Cooling Method | Water Cooling |
| Applying Materials | Metal Laser Cutting Machine |
General Information
| Condition | New |
| Country of Origin | China (Anhui Province) |
| Warranty | 3 Years |
| Core Selling Point | Long Service Life |
| Certification | CE Certified |
RONGWIN Fiber Laser Cutting Machine in Action

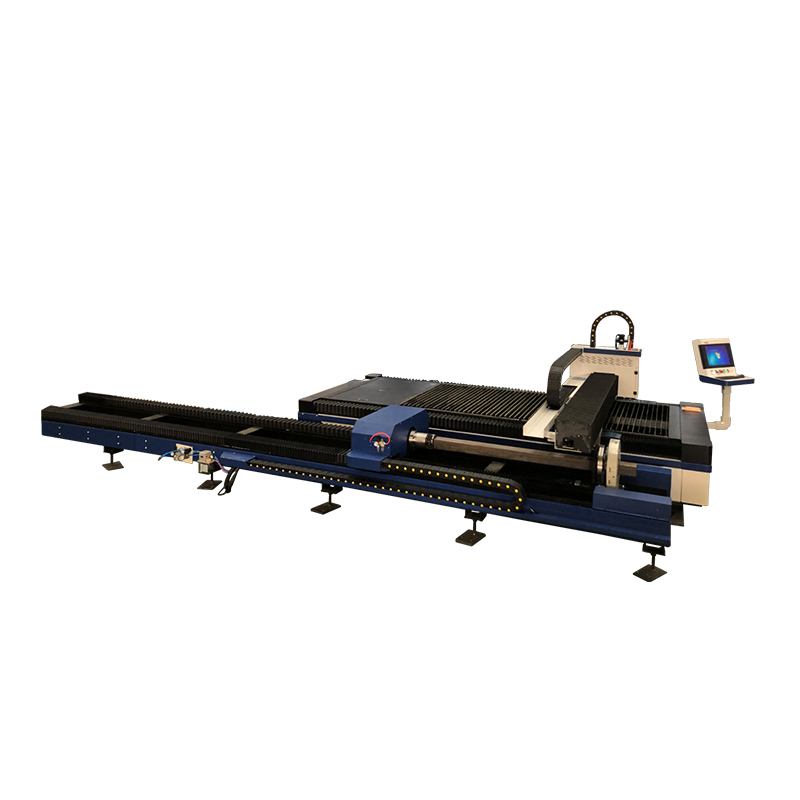

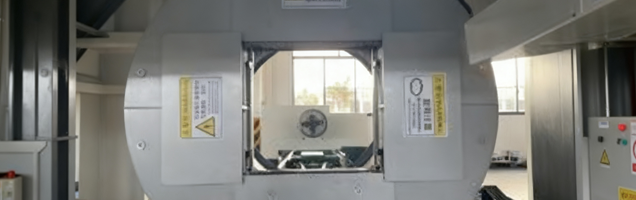

Tube and Pipe Laser Cutting Capability
RONGWIN plate and pipe laser cutting machines feature integrated rotary axis for processing round tubes, square tubes, and rectangular profiles. The pipe cutting module supports diameters Φ165/Φ220/Φ350 and lengths up to 12000mm, making it suitable for structural steel fabrication, automotive exhaust systems, furniture manufacturing, and pipeline industries.
Key pipe processing advantages include automatic chuck clamping, real-time follow-up support, and Cypcut tube cutting programming module for seamless transition between plate and pipe cutting modes.
Pipe length: 6000mm/9000mm/12000mm+
Pipe diameter: Φ165/Φ220/Φ350+
Round, square, rectangular profiles
Advanced Engineering Features

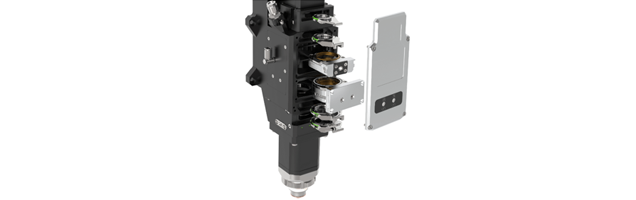

Auto-Focus Cutting Head
Intelligent auto-focus laser cutting head automatically adjusts focal length based on material type and thickness, ensuring optimal cut quality without manual intervention. Capacitive height sensing maintains consistent standoff distance across uneven sheet surfaces.

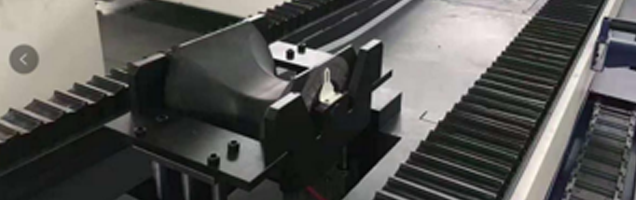

Precision Motion System
High-rigidity gantry structure with precision linear guides and helical rack drive delivers ≤±0.03mm positioning accuracy and smooth motion at up to 120m/min rapid traverse speeds across the full work envelope.
Fully Enclosed Protection
Full enclosure design with CE-compliant laser safety windows protects operators from laser radiation while allowing clear visibility of the cutting process. Integrated fume extraction ports maintain clean working environment.
Industry Applications
RONGWIN CNC fiber laser cutting machines serve diverse metal fabrication needs across multiple industries worldwide. From sheet metal job shops to heavy structural fabrication, the RWLG series delivers reliable cutting performance.
Automotive Manufacturing
Precision cutting of chassis components, body panels, brackets, exhaust system parts and customized automotive accessories in stainless steel and carbon steel.
Metal Furniture & Decoration
Intricate decorative patterns, furniture frames, metal screens, staircases, railings and architectural metalwork with smooth cut edges requiring minimal post-processing.
Sheet Metal Fabrication
General sheet metal processing including enclosures, cabinets, machine frames, agricultural equipment parts, and custom fabrication for various industrial sectors.

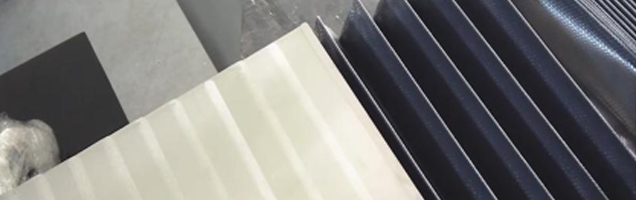

Cutting Samples & Quality Results
Precision Cut Edge Detail
Stainless Steel Cutting Sample
Carbon Steel Cutting Sample
Why Choose RONGWIN Fiber Laser Cutting Machines
CE Certified Quality
RONGWIN laser cutting machines meet CE certification standards, demonstrating compliance with European safety, health, and environmental requirements for industrial machinery.
3-Year Comprehensive Warranty
Every RONGWIN fiber laser cutting machine is backed by a 3-year warranty, covering core components including the laser source, CNC controller, and motion system.
Years of Manufacturing Excellence
Based in Anhui Province, China, RONGWIN has established years of expertise in laser cutting technology, serving metal fabrication businesses globally with reliable CNC laser solutions.
Premium Components
Each machine integrates IPG fiber laser source (industry-leading brand), Cypcut CNC control system, precision linear guides, and industrial water cooling for dependable long-term operation.
Frequently Asked Questions
What materials can the RONGWIN fiber laser cutting machine cut?
This CNC fiber laser cutting machine is designed for metal materials including stainless steel, carbon steel, mild steel, aluminum, brass, copper, galvanized steel, and alloy steel. The IPG fiber laser source delivers excellent beam quality for reflective metals like aluminum and copper. Material thickness capacity depends on the selected laser power, ranging from thin sheets (0.5mm) to thick plates (up to 30mm+ with 30000W configuration).
How does the dual plate and pipe cutting function work?
The machine features an integrated rotary axis attachment for pipe and tube processing. When cutting flat sheets, the rotary unit is disengaged and the machine operates as a standard flatbed laser cutter. For pipe cutting, the rotary axis engages to rotate round, square, or rectangular tubes while the cutting head moves along the pipe axis. Switching modes is straightforward through the Cypcut control software. Supported pipe diameters include Φ165, Φ220, and Φ350, with lengths up to 12000mm.
What is the cutting accuracy and speed of this machine?
Positioning accuracy is ≤±0.03mm on X/Y axes, with repeat positioning accuracy at ≤±0.02mm. Maximum positioning speed reaches 120m/min for rapid traverse between cuts. Actual cutting speed depends on material type, thickness, and laser power. For example, a 3000W configuration cuts 1mm stainless steel at approximately 30-40m/min, 3mm carbon steel at 3-4m/min, and 1mm aluminum at 20-30m/min.
What after-sales support and warranty is included?
RONGWIN provides a comprehensive 3-year warranty covering core machine components. Support includes remote technical assistance, online troubleshooting, spare parts supply, and optional on-site installation and training services. Cypcut software updates and technical documentation are provided. The water cooling system and IPG laser source are supported through their respective manufacturer warranty channels coordinated by RONGWIN.
How do I choose the right model and laser power for my needs?
Model selection depends primarily on your typical workpiece dimensions. For standard sheet sizes, RWLG-3015G (3000×1500mm) or RWLG-4020G (4000×2000mm) cover most job shop needs. For large-format cutting, RWLG-6020G to RWLG-130225G handle oversized plates. Laser power selection depends on your typical material and thickness range: 1500W-3000W suits sheet metal up to 6mm, 6000W-8000W for mid-thickness up to 16mm, and 12000W-30000W for heavy plate cutting. Consult with RONGWIN for a personalized recommendation based on your production requirements.
Get a Custom Quote for Your Fiber Laser Cutting Machine
Contact RONGWIN today for a personalized configuration and price quote. Our team will help you select the optimal model, laser power, and options for your specific metal cutting needs.
