Home / All / Metalworking Machinery / Metal Cutting Machine / Fiber Laser Cutting Machine / Double Table Seal Fiber Laser Cutting Machine | 6000W Power Metal Component Exchange Table Design

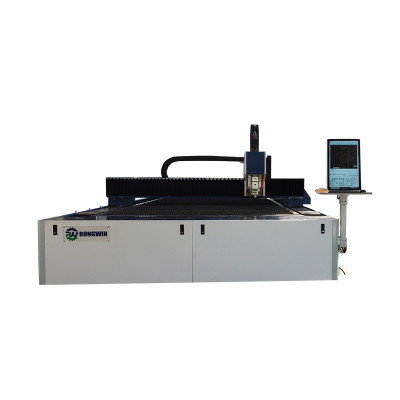

Double Table Seal Fiber Laser Cutting Machine | 6000W Power Metal Component Exchange Table Design
Double Table Seal Fiber Laser Cutter delivers precise, clean cuts on stainless steel, carbon steel, aluminum, and brass.
- Price
- US $
5000-4800
- Model
- Double table seal fiber laser cutting machine
- Unit Price
Order Quantity Unit Price Delivery period 1 - 3 US $5000.0/piece 30 day 4 - 10 US $4800.0/piece 90 day
- Quantity
Detail Information
- Laser Type:Fiber Laser
- Applying Materials:Metal Fiber Laser Metal Cutting Machine
- Degree of Oldness:New
- Country of Origin:China
- Industrial Laser Brand:IPG
- Core Selling Point:Long Service Life
- Warranty:3 Years
- Operation Mode:Continuous Wave
- Configuration:Gantry Type
Double Table Seal Fiber Laser Cutting Machine Cutting Machine introduction

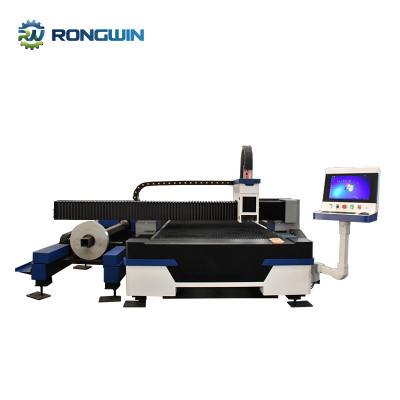

High-Precision Fiber Laser Cutting Machine for Metal Plates and Tubes
Equipped with the most advanced international imported fiber laser source which generates powerful laser focused on objects to cause instant melting and evaporation.Automatic cutting is controlled by digitalied mechanic system.This hi-tech machine has condensed the advanced technologies of fiber laser,digital,and precise mechanics.
Applicable to fast cutting on plate or tube in metal,mainly for cutting on SS,carbon steel,Manganese steel ,galvanized plate,alloy plate,rare metal.
Widely used in kitchen appliance,electric control box,high-resolute device,mechanical equipment,electrical equipment,lighting,posters,auto parts,display equipment,hardware and metal processing.
Double Table Seal Fiber Laser Cutting Machine Application Scenario
Double Table Seal Fiber Laser Cutting Machine Advantages
Feature 1

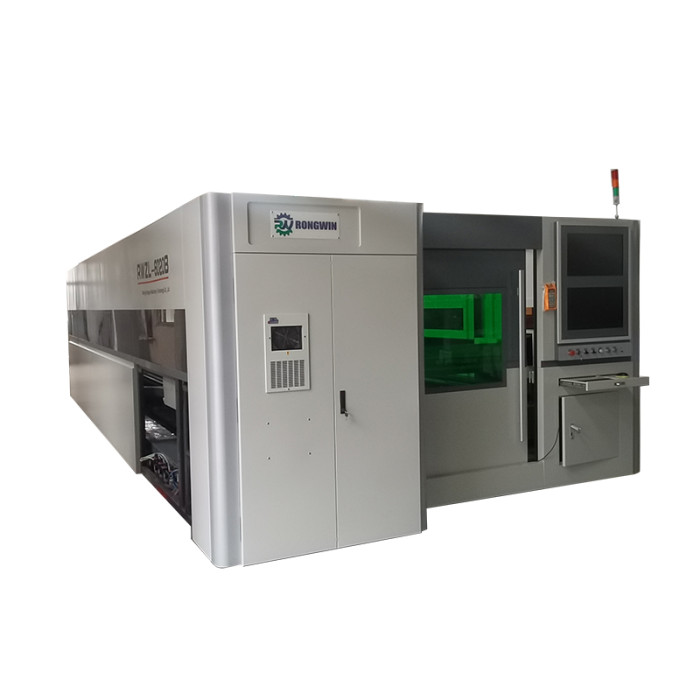

Closed control design
A good closed effect guarantees the control of the appliance'sdust-free effect, providing protection for long hours of work.Configuration thermostatic airconditioning, to ensure constanttemperature inside the control cabinet, to prevent the temperaturechanges caused by condensation in the control cabinet laser andelectrical components.
Feature 2
Monitor
Equipped with a monitoring device, the laser machine allows users to observe its operating status in real time, enhancing safety and operational efficiency. This feature ensures timely detection of any anomalies during the cutting or welding process, enabling immediate intervention and reducing downtime. It also provides insights into performance metrics like power output, cutting speed, and material feed, which aids in optimizing workflows. The monitoring system's intuitive interface supports operators with visual and data-driven feedback, improving accuracy and maintaining high production standards.
Double Table Seal Fiber Laser Cutting Machine Technical Parameters
Double table seal fiber laser cutting machine offers a variety of models, covering a variety of needs from small to large, the specific technical parameters range as follows:
Model | RWZL-3015B | RWZL-4015B | RWZL-6020B |
Cutting range | 3000*1500 | 4000*1500 | 6000*2000 |
X-axis travel |
3020
|
4020
|
6020
|
y-axis travel | 1520 | 2020 | 2020 |
z-axis travel | 120/150 | 120/150 | 120/150 |
Maximum positioning speed | 100m/min-140m/min | 100m/min-140m/min | 100m/min-140m/min |
positioning accuracy | ±0.05 | ±0.05 | ±0.05 |
Repeat positioning accuracy | ±0.03 | ±0.03 | ±0.03 |
Table positioning accuracy | ±1.0 | ±1.0 | ±1.0 |
Overall dimensions | 8400*3750*2050 | 10400*4250*2050 | 14400*4250*2050 |
Laser output power | 500W---6000W | 500W---6000W | 500W---6000W |
Parameters within this range reflect the wide applicability of the Double table seal fiber laser cutting machine in different application scenarios, from small and medium-sized precision processing to large-scale industrial manufacturing.
Double Table Seal Fiber Laser Cutting Machine Details Display
Automatic iubrication device
Control system
Laser cutting head
Electrical cabinet
Double Table Seal Fiber Laser Cutting Machine FAQ
What materials can this machine cut?
The machine is designed for cutting a range of metals, including stainless steel, carbon steel, aluminum, and brass.
What is the purpose of the double table design?
The dual-exchange worktable allows for simultaneous loading and cutting, minimizing downtime and increasing productivity.
Is the machine safe to operate?
Yes, the sealed structure enhances operator safety by controlling dust and emissions during operation.
What industries commonly use this machine?
It is ideal for applications in automotive, aerospace, metal fabrication, and other industries requiring high-speed, precision cutting.
