Home / All / Metalworking Machinery / Horizontal Corner Polishing Machine / Basicpolishing machine -- Rw-JcMJ-4-100
Basicpolishing machine -- Rw-JcMJ-4-100
The Basic Edge Angle Automatic Grinding Machine IIl Generation (RW-JCMJ-4-100) is an automateddevice specifically designed for grinding workpieces with amall edge and angle dimensions. Thisequipment is equipped with electric vertical lifting function, capable of completing grinding forworkpiece edges and angles s100mm in one go.
| Share | |
|---|---|
| Categories | Horizontal Corner Polishing Machine |
| Brand | MetalWorkMaster Smart Custom Metal Solution Expert |
| Model | Rw-JcMJ-4-100 |
| Model | RW-JCMJ-4-100 |
| Power | 2.6kw |
| Dimensions(Length x Width x Height] | 1430*960*1280 mm |
| Weight | Approximately 265 kg |
| Belt Length | 2100x100 mm |
| Effective Grinding Distance | <100 mm |
| Brand of Electrical Componentsin the Control System | Delixi; Chint |
Detail Information

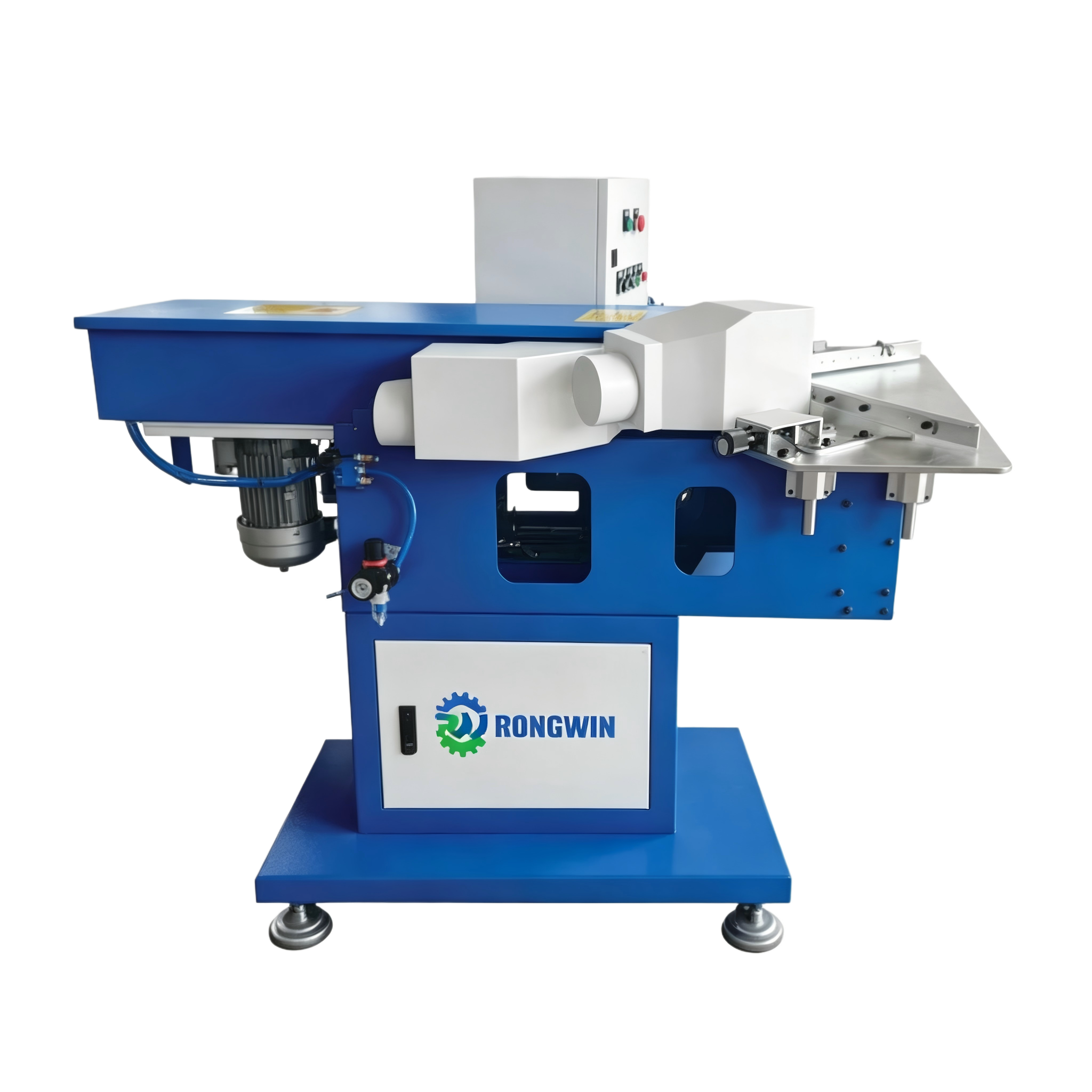

RW-JCMJ-4-100 (3rd Generation)
Basic Edge Angle Automatic Grinding Machine
Compact Electric Lifting Edge & Corner Grinder
The Basic Edge Angle Automatic Grinding Machine III Generation is an automated device for grinding workpieces with small edge and angle dimensions. Equipped with electric vertical lifting, it completes grinding for edges and angles ≤100mm in one go.
Request a Quote →Performance Characteristics
≤100mm Edge Height
Designed for small workpieces with edge and corner height up to 100mm.
R-Angle Grinding R1~15mm
Grinds R angles from 1mm to 15mm with consistent quality.
Electric Vertical Lifting
Easy height adjustment for quick setup and operation.
Reliable Components
Equipped with Delixi or Chint electrical components for long-term durability.
Technical Parameters
| Model | RW-JCMJ-4-100 |
|---|---|
| Power | 2.6 kW |
| Dimensions (L×W×H) | 1430 × 960 × 1280 mm |
| Weight | Approx. 265 kg |
| Belt Length | 2100 × 100 mm |
| Effective Grinding Distance | < 100 mm |
| Electrical Components | Delixi / Chint |
Applicable Scope
- Grinding edges and corners of various small-sized workpieces
- Grinding edges and corners of small solid wood furniture
- Small doors, windows, kitchenware finishing
- Electrical cabinets, sports equipment edge rounding
Why Choose the RW-JCMJ-4-100?
Compact, affordable, and fully automated edge grinding for small parts. Reduce manual finishing time and improve consistency.
2.6kW
Power
≤100mm
Max Edge Height
R1~15
Radius Range
Get a Quote for Your Small Part Finishing
Our team can help you determine if the RW-JCMJ-4-100 fits your production needs.
