Home / All / Metalworking Machinery / Metal Forming Machine / V Grooving Machine / Rongwin V Grooving Machine | Tungsten Carbide Tooling for Precision and Durability

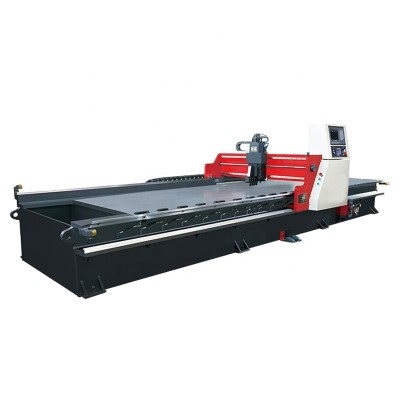

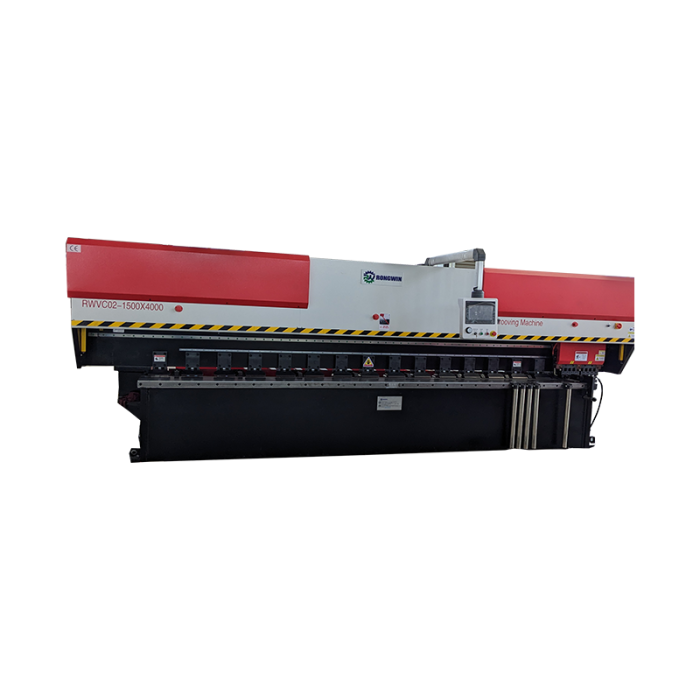

Rongwin V Grooving Machine | Tungsten Carbide Tooling for Precision and Durability
The CNC V Grooving Machine cuts sheet metal for V-grooves in bending, used in metal processing, construction, and electronics.
- Price
- US $
36000-20000
- Model
- 1500 4000 CNC V Grooving Machine1500 4000 CNC V Grooving Machine
- Unit Price
Order Quantity Unit Price Delivery period 1 - 4 US $36000.0/piece 15 day 5 - 10 US $20000.0/piece 30 day
- Quantity
Detail Information
- Metal Length *Width:1500x4000mm
- Metal thickness the machine can work:0.4-6mm
- V cutting speed:5M-70M/min
- Back feeding device moving:0.5-20M/min
- CNC operating system:Taiwan HUST brand
- X Y Z axis Positioning accuracy:±0.02mm
- Angular Contact Ball Bearings:Japan NSK
- Ball screw:Taiwan HIWIN brand
- Electric components:Schneider brand
CNC V Grooving Machine Introduction
CNC V Grooving Machine Enabling Precision Bending and Folding of Materials
CNC V Grooving Machine creates precise V-shaped grooves on materials, enabling accurate bending and folding without causing cracks or deformation. Commonly used in sheet metal fabrication, it allows for high-precision bends in applications like signage and enclosures, improving the quality and efficiency of the process.
CNC Grooving Machine Application Scenario
CNC V Grooving Machinee Advantages
Feature 1
Plate cutting thickness
Rongwin hydraulic style V grooving machine can do V grooving on the high
thickness which is more than 5 mm.
Feature 2
CNC system
The use of advanced CNC technology can accurately control the machine's various movements and processing processes, improving processing accuracy and production efficiency.
CNC V Grooving Machine Technical Parameters
CNC grooving machine offers a variety of models, covering a variety of needs from small to large, the specific technical parameters range as follows:
|
Name
|
Value
|
|
Processing plate thickness
|
0.4-6mm
|
|
Processing plate length and width
|
1500x4000mm
|
Grooving speed | 5M-70M/min |
Feeding speed | 0.5-20M/min |
X-axis minimum setting unit | 0.01 mm |
X-axis positioning accuracy | ±0.02mm |
Y-axis minimum setting unit | 0.01 mm |
Y-axis positioning accuracy | ±0.02mm |
Z-axis minimun setting unit | 0.01 mm |
Z-axis positioning accuracy | ±0.02mm |
X-axis motor power | 5.5KW |
Y-axis motor power | 1KW |
Z-axis motor power | 0.6KW |
Workbench flatness | ±0.01mm |
Feeding method | Back feeding |
Is the worktable easy to replace? | yes |
Number ofinstalled knives | 4 alloy knives |
Max. once grooving depth | 1.2mm |
Max. grooving depth | 3 mm |
Parameters within this range reflect the wide applicability of the Metal hydraulic V-grooving machine in different application scenarios, from small and medium-sized precision processing to large-scale industrial manufacturing.
CNC V Grooving Machine Details Display
Blade
Main motor
Electrical cabinet
Roller
CNC Grooving Machine FAQ
What is the cutting capacity of the CNC Grooving Machine ?
The Metal CNC Grooving Machine as a cutting capacity of up to 16mm thickness and 4000mm width for various types of metal sheets.
What materials can the CNC Grooving Machine ?
The machine is designed to cut a wide range of metals, including carbon steel, stainless steel, aluminum, and other non-ferrous materials.
How is the blade clearance adjusted on the CNC Grooving Machine ?
The blade clearance is adjustable, allowing for precise cutting based on the thickness of the material being processed. This ensures clean, accurate cuts with minimal burr.
What are the key features of the CNC Grooving Machine ?
Key features include an advanced hydraulic system, a user-friendly control interface, adjustable blade clearance, and a robust construction designed for long-term durability and stable performance.
