Anhui Manufacturer's New Hydraulic Punching Machine | Long Service Life Punching Machine

Anhui Manufacturer's New Hydraulic Punching Machine |  Long Service Life Punching Machine
Anhui Manufacturer's New Hydraulic Punching Machine |  Long Service Life Punching MachineAnhui Manufacturer's New Hydraulic Punching Machine |  Long Service Life Punching MachineAnhui Manufacturer's New Hydraulic Punching Machine |  Long Service Life Punching MachineAnhui Manufacturer's New Hydraulic Punching Machine |  Long Service Life Punching MachineAnhui Manufacturer's New Hydraulic Punching Machine |  Long Service Life Punching MachineAnhui Manufacturer's New Hydraulic Punching Machine |  Long Service Life Punching Machine
Anhui Manufacturer's New Hydraulic Punching Machine offers long service life and efficient punching performance.
  • Price
  • US $20000-3000
  • Model
  • 25-120T
  • Unit Price
  • Order QuantityUnit PriceDelivery period
    1 - 4US $20000.0/piece16 day
    5 - 10US $3000.0/piece30 day
  • Quantity
Detail Information
  • Usage:Metal hole punching
  • Keyword:power press machine
  • Function:Punching bending
  • Power Source:Hydraulic
  • CNC or Not:Normal
  • Model:20Y-90T
  • Certification:CE ISO
  • MAX punching diameter:30mm
  • Color:Customized
Anhui Manufacturer's New Hydraulic Punching Machine Long Service Life Punching Machine

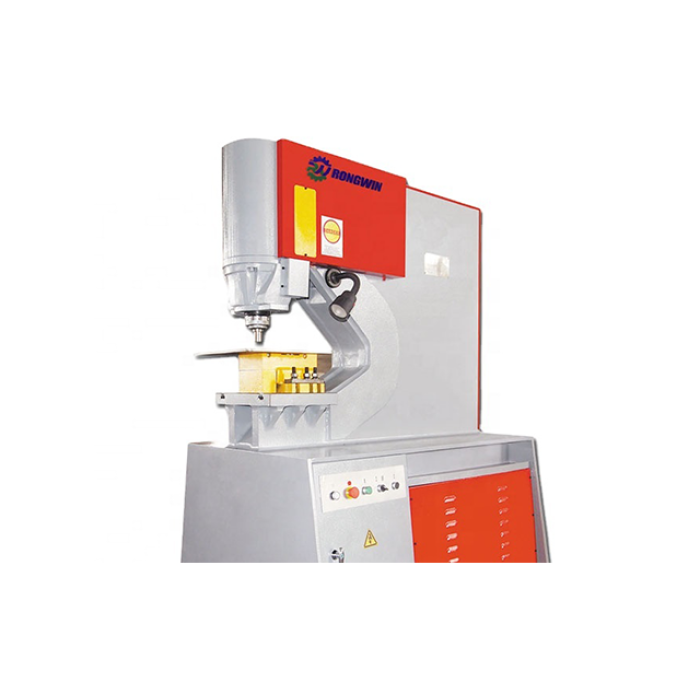

Hydraulic Punching Machine
Anhui Manufacturer's New Hydraulic Punching Machine Long Service Life Punching Machine

Rongwin hydraulic punching machines used for punching all kinds of the whole hole, notch,slotof aluminium window profile,work with single mould and it is equipped with aluminum profilesingle mold and combination mold, capable of complete punch machining of all kinds of boresand slots of sliding window or casement window. The equilibrium of that machine is good, andthe accuracy is high. lt is easy to change the combination mold lt is the ideal equipment foraluminum window profile processing.Our hydraulic punching machines have been designed by experienced technicians, assisted bypowerful equipment and adapted to the ongoing suggestions many users.

Application Scenario
Hydraulic punching machine
Hydraulic punching machine
Hydraulic punching machine
Hydraulic punching machine
Hydraulic punching machine
Hydraulic punching machine
Advantages
punching
Feature 1
Punching
Quick punch change
upper and lower mold
Feature 2
Upper and lower mold
The rotating design is easy tooperate, and the nut and screwsleeve are easy to replace theupper and lower dies.





 Hydraulic Punching Machine  Technical Parameters
Hydraulic punching machine technical parameters series offers a variety of models, covering a variety of needs from small to large, the specific technical parameters range as follows:
Type
Punching pressure (T)
Material strength (mm)
Max. length of cylinder stroke(mm)
Trips frequency (times/min)
Punching thickness(mm)
Max. punching diameter (mm)
Power (kw)
Dimension LxWxH (mm)
16Y-60T
60
≤450
80
10-20
16
25
5.5
1400x700x1700
20Y-90T
90
≤450
80
12-22
20
30
7.5
1600x800x1800
25Y-120T
120
≤450
90
8-18
25
35
11
1800x960x2000
30Y-160T
160
≤450
100
6-16
30
38
15
2000x1050x2450
40Y-200T
200
≤450
110
6-16
40
40
18.5
2200x1050x2450
50Y-250T
250
≤450
200
6-16
50
45
18.5
2600x1440x2500
Parameters within this range reflect the wide applicability of the hydraulic punching machine technical parameters series shearing machine in different application scenarios, from small and medium-sized precision processing to large-scale industrial manufacturing.
Hydraulic Punching Machine Details Display
Punching parts

Punching parts
Punching

Punching
Machine cabinet

Machine cabinet
Punching dies

Punching dies
Hydraulic Punching Machine  FAQ
What is the cutting capacity of the Hydraulic Punching Machine shear?
The Hydraulic Punching Machine  hydraulic guillotine shear has a cutting capacity of up to 16mm thickness and 4000mm width for various types of metal sheets.
What materials can the Hydraulic Punching Machine shear cut?
The machine is designed to cut a wide range of metals, including carbon steel, stainless steel, aluminum, and other non-ferrous materials.
 How is the blade clearance adjusted on theHydraulic Punching Machine shear?
The blade clearance is adjustable, allowing for precise cutting based on the thickness of the material being processed. This ensures clean, accurate cuts with minimal burr.
What are the key features of theHydraulic Punching Machine  shear?
Key features include an advanced hydraulic system, a user-friendly control interface, adjustable blade clearance, and a robust construction designed for long-term durability and stable performance.
